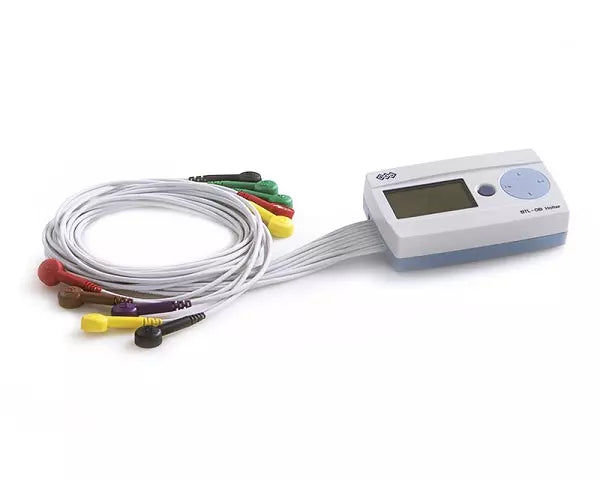

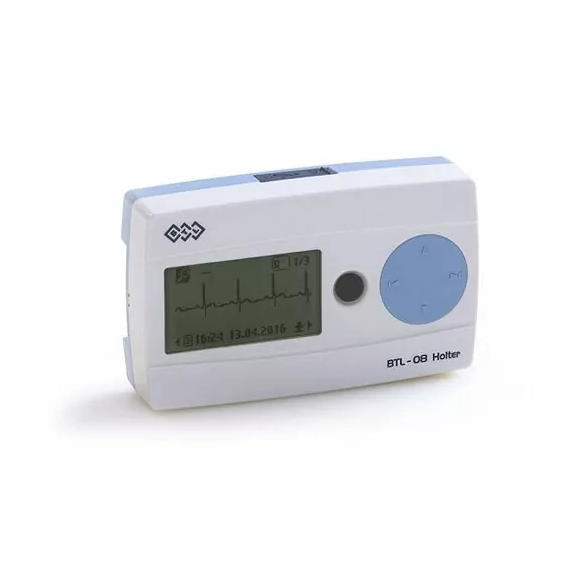

BTL H600 Holter Monitor

BTL H600 Holter Monitor

✓
Medical Grade

Professional environments.

✓
Trusted Brands

Recognized suppliers.

✓
Expert Support

Assistance available.

✓
Reliable Delivery

Dependable shipping.

Product Description

Description for BTL H600 Holter Monitor

BTL H600 Holter Monitor is the first 24 bit Holter system in the world! Its excellent signal quality, which is comparable to high end desktop ECGs, provides the best possible platform for the Holter examination. All the presets from the record duration to the way how to start a new record can be modified and adapted to the user's need.

Main Features of Products:

Excellent Signal Quality:

BTL Holter recorder features a supreme signal quality even under highly demanding conditions (e.g. rapid movements). Physicians consequently spend minimum time verifying results of the automatic diagnostics.

3, 7, 12-channel Multi-day Recording

The extended number of leads makes the BTL-08 Holter suitable for detection of broad spectrum of cardiac events. Recording for up to 7 days is especially helpful when nonpersistent arrhythmias are expected to occur.

Automatic Start of Recording

Starting a Holter recording is a routine with BTL-08 Holter. The recording starts automatically 20 minutes after turning the device on.

Built-in Microphone

BTL-08 Holter is equipped with a microphone to record patient’s voice whenever the patient button is pressed. This can be used as a replacement of the patient’s diary or to dictate patient’s name at the examination startup.

Diagnostic Software

The BTL CardioPoint software processes all the recorded data

The BTL software uses a number of unique tools that enable fast yet professional evaluation of the recorded ECG.

Product Specifications

Product Name                              BTL H600 Holter Monitor

Brand                                          BTL

Modal Name/ Number                  H600

Number of Channels                    3/7/12

Recording time                            1-7 days (3, 7 channels)

1-4 days (12 channels)

Patient Cable                             4/10 lead

Signal Quality Check                   USB, SD card, BT

LCD screen resolution                128 x 64 px

Storage Capacity                       2 GB

Sampling Frequency                  2000 Hz / 16 bit

Pacemaker detection                100 µs / Dedicated circuit with 40000 Hz detection function

Frequency Range                      0.05-150 Hz

Digital Resolution                     1.8 µV

Maximum Electrode potential  ± 400 mV

Dynamic range                        60mV

Common mode rejection       >100 dB

Batteries alkaline                  2× AA 1.5 V or 2 × Ni-Cd or 2 × NiMH 1.2 V

Dimensions                          102 × 62 × 24 mm (4 × 2.44 × 0.94 inches)

Weight                                106 g (3.7 oz)
