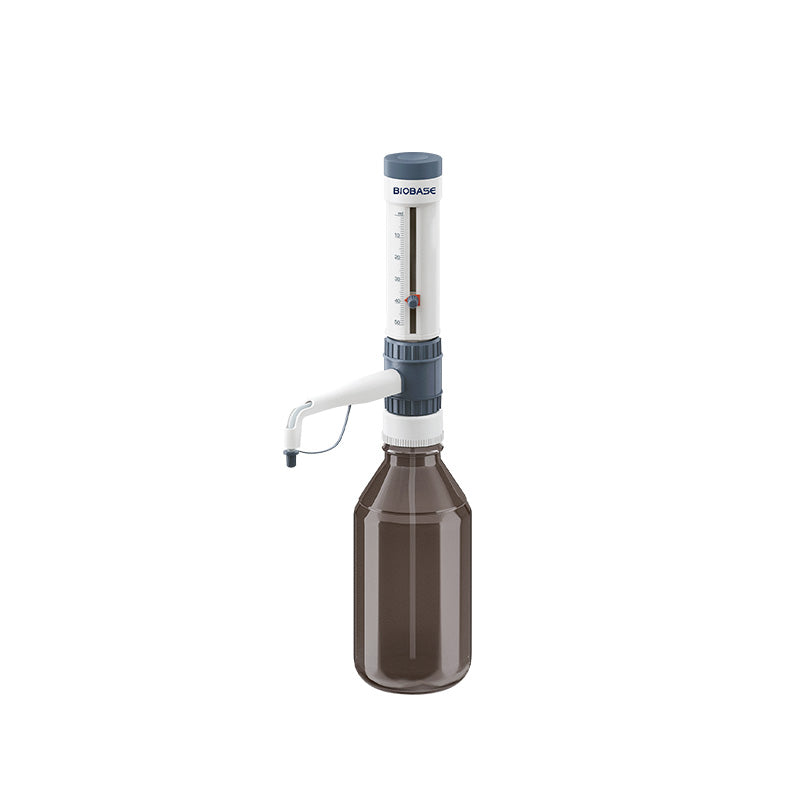

Bottle-Top Dispenser
Technical Parameters:
| Volume Range |
Subdivision |
Accuracy |
Precision |
Package |
Gross Weight（kg） |
Package Size(mm) |
| 1ml |
/ |
±2.00%, 20μl |
1.00%, 10μl |
20pcs/carton |
14 |
595*430*275mm |
| 0.5-5ml |
0.1ml |
±0.50%, 25μl |
0.10%, 5μl |
20pcs/carton |
14 |
595*430*275mm |
| 1-10ml |
0.2ml |
±0.50%, 50μl |
0.10%, 10μl |
20pcs/carton |
14 |
595*430*275mm |
| 2.5-25ml |
0.5ml |
±0.50%, 125μl |
0.10%, 25μl |
20pcs/carton |
14 |
595*430*275mm |
| 5-50ml |
1.0ml |
±0.50%, 250μl |
0.10%, 50μl |
20pcs/carton |
14 |
595*430*275mm |

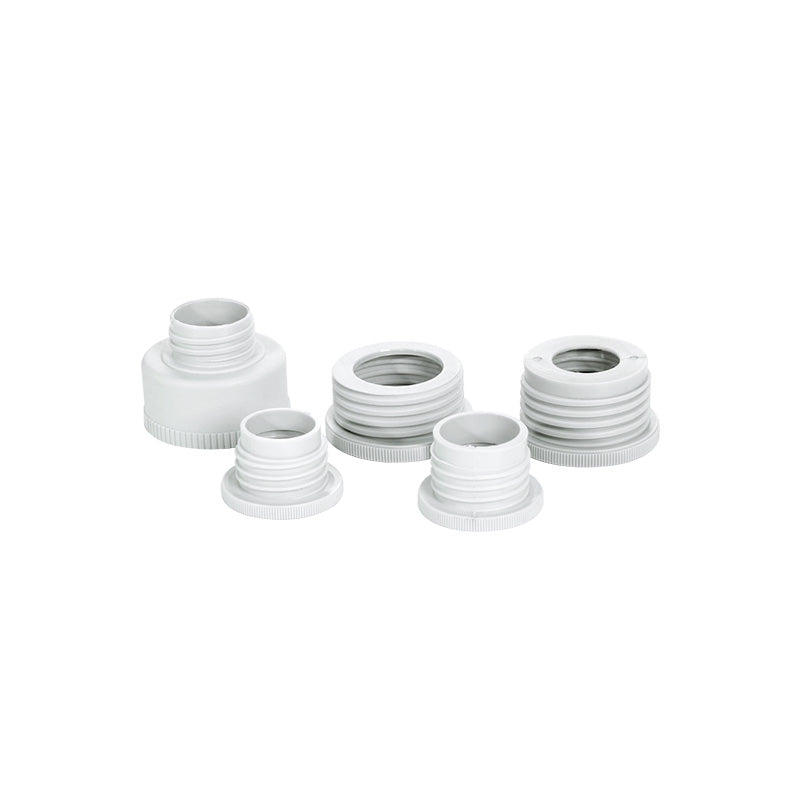

Accessories:
| Accessory Code |
Description |
Accessory Code |
Description |
| 30013110 |
Adapt 45/40mm |
30013150 |
Adapt 32/28mm |
| 30013120 |
Adapt 45/32mm |
30013160 |
Bottle(Brown, 1L) |
| 30013130 |
Adapt 45/38mm |
30013170 |
Filling tube(m) |
| 30013140 |
Adapt 32/25mm |
30013180 |
Discharge tube(m) |
Features:
* Excellent chemical resistance.
* Fully autoclavable at 121℃.
* Adjustable control knob makes setting the volume easy.
* Made of PTFE, FEP, BSG,PP.
* Vapor pressure Max. 500mbar, viscositymax. 500mm2/s, temperature max.40°C, density max.2.2g/cm2.
