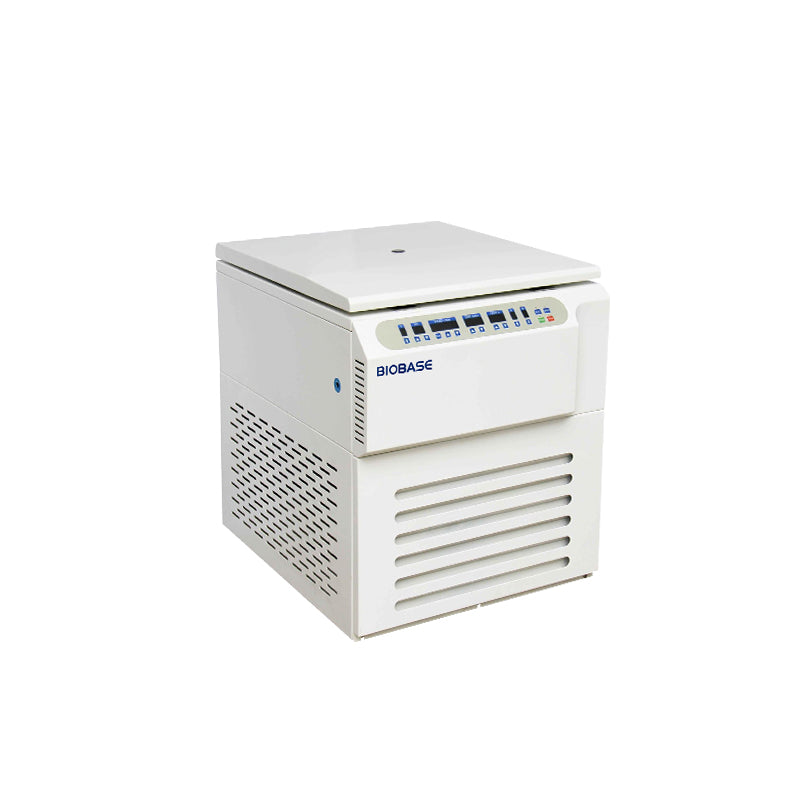

Blood Bag Bank Table Type Centrifuge MachineBKC-BB8
Features:
1.High torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
2.The flexible shaft drive system directly drives the rotor to protect the motor, with precise speed control, stable operation, low vibration and low noise.
3.Induction automatic electric suction door lock, and emergency door opening device; self-check and protection of door lock, overspeed, overtemperature, unbalance, etc., safe and reliable.
4.Famous brand c customized specially equipped with fluorine-free compressor unit, high-quality copper tube wrapped in centrifugal cavity, full tin welding technology, double-circulation pipeline, greatly improving refrigeration efficiency, can be reduced from room temperature 25℃ to 4℃ within 4 minutes; use "automatic constant temperature control system to adjust Technology" precise temperature control.
5.Using a microcomputer processor for precise control, LED display, and key programming; Real time and simultaneous display of rotor No., Program number, Speed/RCF, Time, Temperature, and Speed up and Down gear; Parameters can also be modified during operation.
6.Can store and call 10 sets of programs, with 10 acceleration rates and 10 deceleration rate options.
7.The whole machine is all-steel structure, 304 stainless steel centrifugal chamber, multi-layer protection design, safe and reliable; three-stage vibration reduction, automatic balance function.
8.The bottom is equipped with pulleys for easy transportation, installation, and relocation.
9.The door cover of the instrument is equipped with double hydraulic rods to reduce the operation load; the front operation panel, the door cover is opened backwards, which is ergonomic and comfortable to operate.
Parameter:
| Model |
BKC-BB8 |
| Max Volume |
8*2000ml |
| Max Speed |
8000rpm |
| Max RCF |
14551×g |
| Speed Accuracy |
±10rpm |
| Temperature Range |
-20℃～40℃ |
| Temperature Accuracy |
±1℃ |
| Noise |
≤68dBA |
| Timer |
1min～9h59min |
| Power supply |
AC380/220V,50/60HZ |
| External Size(W*D*H) mm |
945*890*1015 |
| Package Size(W*D*H) mm |
1200*1050*1565 |
| Net Weight(kg) |
610 |
| Gross Weight(kg) |
680 |
BKC-BB8 Rotors：
| Rotors No. |
Rotor type |
Max Speed(rpm) |
Max Volume |
Max RCF |
| No.1 |
Angle rotor |
8000 |
6*1000ml |
14551×g |
| No.2 |
Swing Rotor |
4000 |
8*2000ml |
5716×g |
| No.3 |
Swing Rotor |
4000 |
8*2000ml(Blood Bag Cup) |
5716×g |
| Adapter |
36 bags of 200ml blood bags |
| Adapter |
or 24 bags of 400/500ml blood bags |
