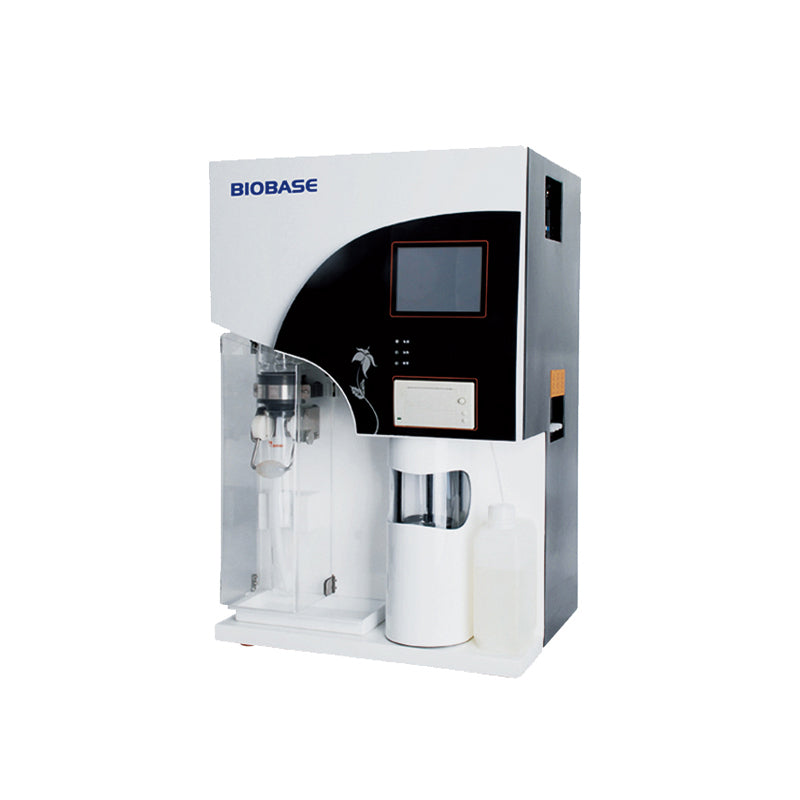

BKN-986 Kjeldahl Apparatus Kjeldahl Nitrogen Analyzer
Introduction：
Built in colorimetric titration device; Two steam models, can adjust solutions adding’s sequence, for distillation and absorption special samples; Touch screen used for operating and display.
Models:
| Model |
BKN-984 |
BKN-110F |
BKN-986 |
| Water Consumption |
1.5L/Min |
| Ambient Temperature |
5~40℃ |
| Ambient Humidity |
80% |
| Measure Range |
0.1mg~240mg |
| Analysis Time |
3~6min |
5~10min |
| Recovery Ratio |
≥99.5% |
| Sample Amount |
Solid ≤6g;
Liquid ≤16ml
|
Solid ≤ 5g;
Liquid ≤20ml
|
| Burette Accuracy |
/ |
1.0μL/ step |
2μL/ step |
| Reproducibility |
/ |
±0.5% |
±0.5% |
| Consumption |
2000W |
| Power Supply |
AC110/220 V ±10%,60/50Hz |
| Packing size(W*D*H) |
655*528*880mm |
Main body:585*525*900mm
Accessories:605*600*355mm
|
Main body:585*525*905mm
Accessories:600*600*360mm
|
| Gross weight |
45Kg |
Main body:52.7kg,
Accessories:12.5kg
|
Main body:50.3Kg,
Accessories:13.4kg
|
| Functions List |
BKN-984 |
BKN-110F |
BKN-986 |
| Variable Steam Generator |
● |
● |
● |
| Cooling Water Pressure Monitor |
● |
● |
● |
| Cooling Water Temperature Monitor |
|
● |
● |
| Automatic Alkali Solution Adding |
● |
● |
● |
| Automatic Dilute Water |
● |
● |
● |
| Auto Solution Adding |
● |
● |
● |
| Tube Emptying |
● |
● |
● |
| Removable Drain Tray |
● |
● |
● |
| Safety Door |
● |
● |
● |
| Tube on Position Sensor |
● |
● |
|
| Tube Replacement Sensor |
● |
● |
|
| Colorimetric Titration Device |
|
● |
● |
| Result Calculation |
|
● |
● |
| Result and Data Storing |
|
● |
● |
| Built-in Printer |
|
● |
|
| Automatic fault detection function |
● |
● |
● |
| Titration While Distillation |
|
● |
|
