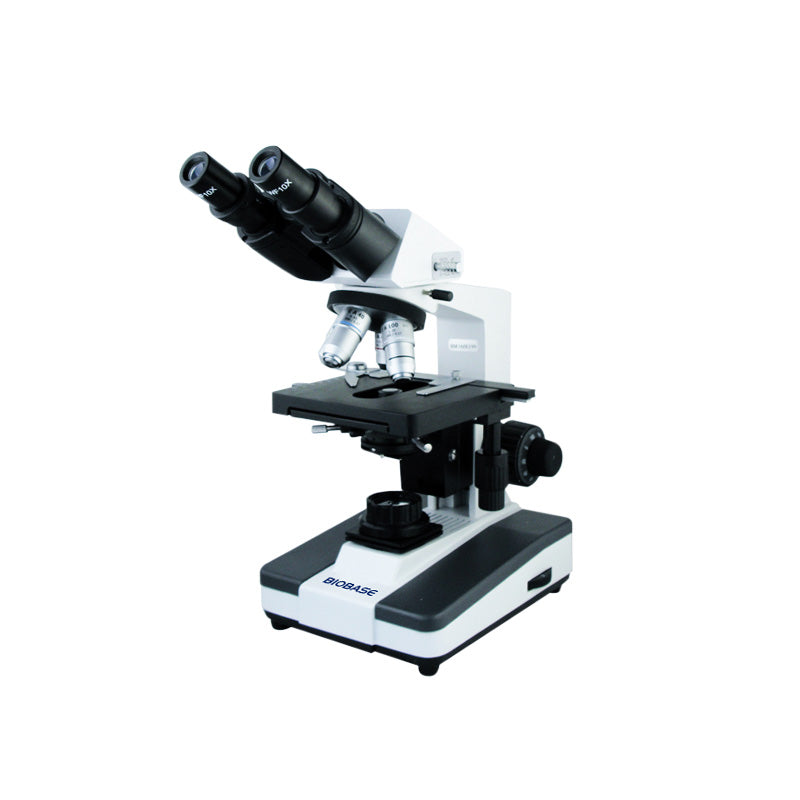

Biological Microscope BM-8C

Biological Microscope BM-8C

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

Biological Microscope BM-8C

Technical Parameters:

Model BM-8C
View Head Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Eyepiece P10X/18mm, P16X/11mm
Objective 4X  N.A=0.10  WD=37.50mm
10X  N.A=0.25  WD=7.31mm
40X  N.A=0.65  WD=0.63mm
100X(Oil)  N.A=1.25  WD=0.18mm
Focusing Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm
Stage Double Layers Mechanical Stage 155*145mm, Moving Range 80*50mm
Condenser Abbe NA1.25 centerable condenser with Iris Diaphragm & Filter
Illumination Halogen lamp 6V/20W, Kohler illumination, brightness adjustable
Filter Blue, yellow, green
Power Supply AC85~265V, 50/60Hz
Package Size 355*265*495mm
Gross Weight 6kg



Biological Microscope BM-8C
