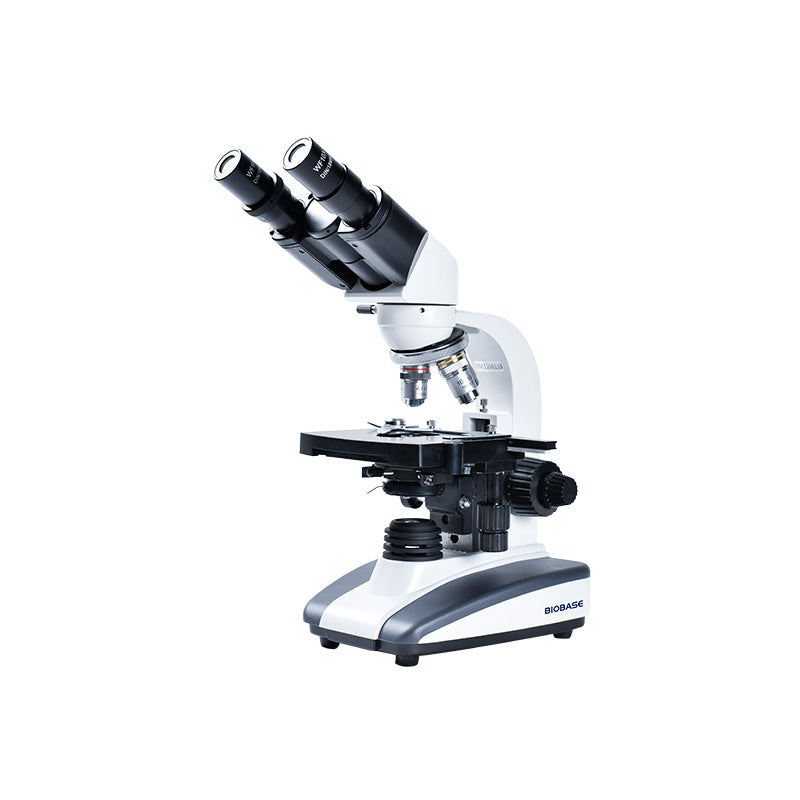

Biological Microscope BM-2CA
Technical Parameters:
|
Model
|
BM-2CA
|
|
View Head
|
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
|
|
Eyepiece
|
P10X/18mm, P16X/11mm
|
|
Objective
|
4X N.A=0.10 WD=37.50mm
|
|
10X N.A=0.25 WD=7.31mm
|
|
40X N.A=0.65 WD=0.63mm
|
|
100X(Oil) N.A=1.25 WD=0.18mm
|
|
Focusing
|
Coaxial Coarse ＆ Fine Adjustable System, Range 15mm, Fine Division 0.002mm
|
|
Stage
|
Mechanical Stage 140*140mm, Moving Range 75*50mm, Vernier 0.1mm
|
|
Condenser
|
Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter
|
|
Illumination
|
LED lamp, brightness adjustable
|
|
Filter
|
Blue, yellow, green
|
|
Power Supply
|
AC85~265V， 50/60Hz
|
|
Package Size
|
435*330*235mm
|
|
Gross Weight
|
5.5kg
|
The Biological Microscope BM-2CA is your gateway to exploring the tiniest details of life with unparalleled precision and clarity. This cutting-edge microscope is designed to meet the needs of both beginners and experienced researchers, making it an essential tool for various scientific disciplines and educational settings.
