Biological Microscope BBM-17 BBM-17A
Technical Parameters:
|
Model
|
BBM-17
|
BBM-17A
|
|
View Head
|

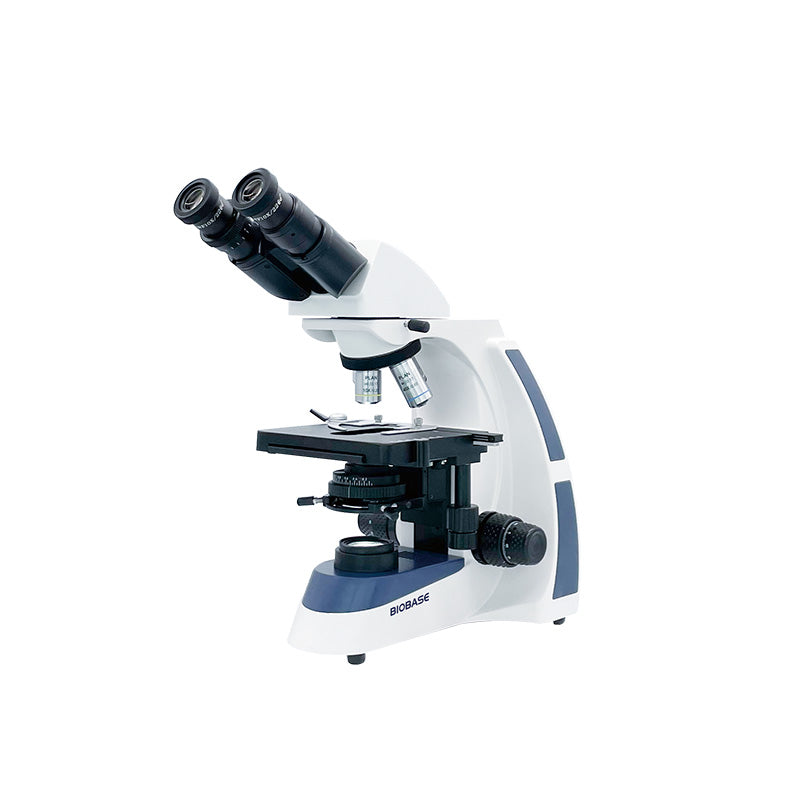

Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 45~75mm
|

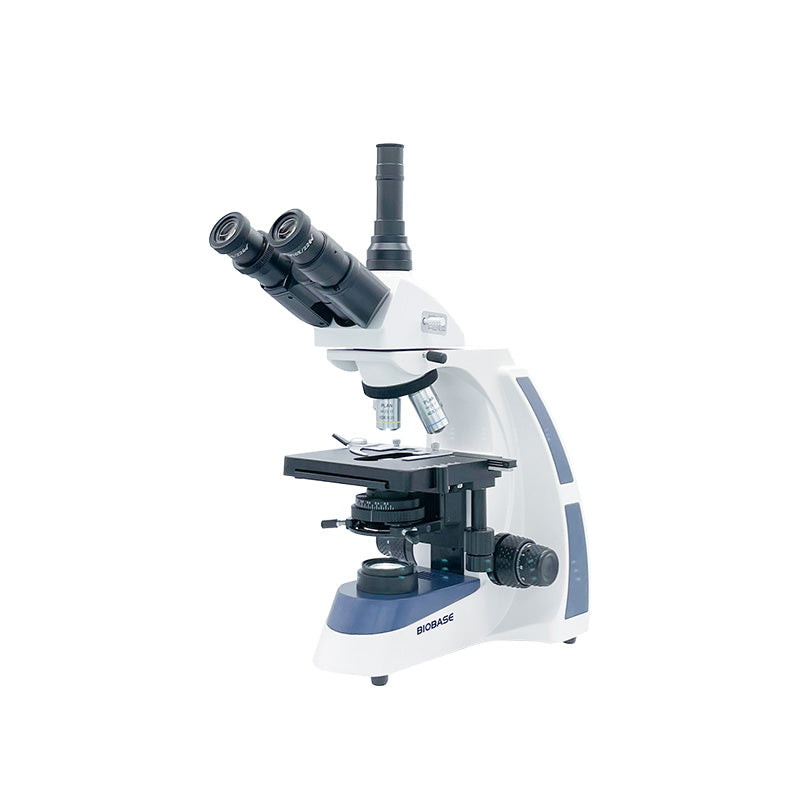

Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 45~75mm
|
|
Eyepiece
|
WF10X/18mm, P16X/15mm（Optional)
|
|
Infinite Achromatic Objective
|
4X N.A=0.10 WD=20.00mm
10X N.A=0.25 WD=13.50mm
40X N.A=0.65 WD=0.68mm
100X(Oil) N.A=1.25 WD=0.20mm
|
|
Focusing
|
Coaxial Coarse ＆ Fine Adjustable System, Range 30mm, Fine Division 0.002mm
|
|
Stage
|
Mechanical Stage 140*160mm, Moving Range 76*45mm
|
|
Condenser
|
Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter
|
|
Illumination
|
LED lamp, brightness adjustable
|
|
Filter
|
Blue, green
|
|
Power Supply
|
AC85~265V， 50/60Hz
|
|
Package Size
|
405*260*510mm
|
|
Gross Weight
|
8.3kg
|
The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
