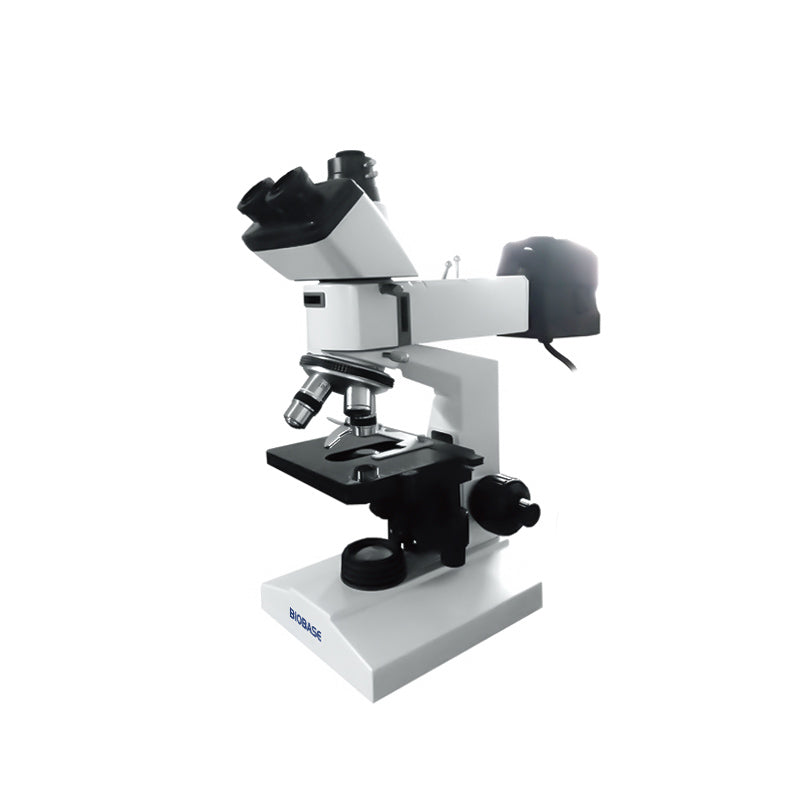

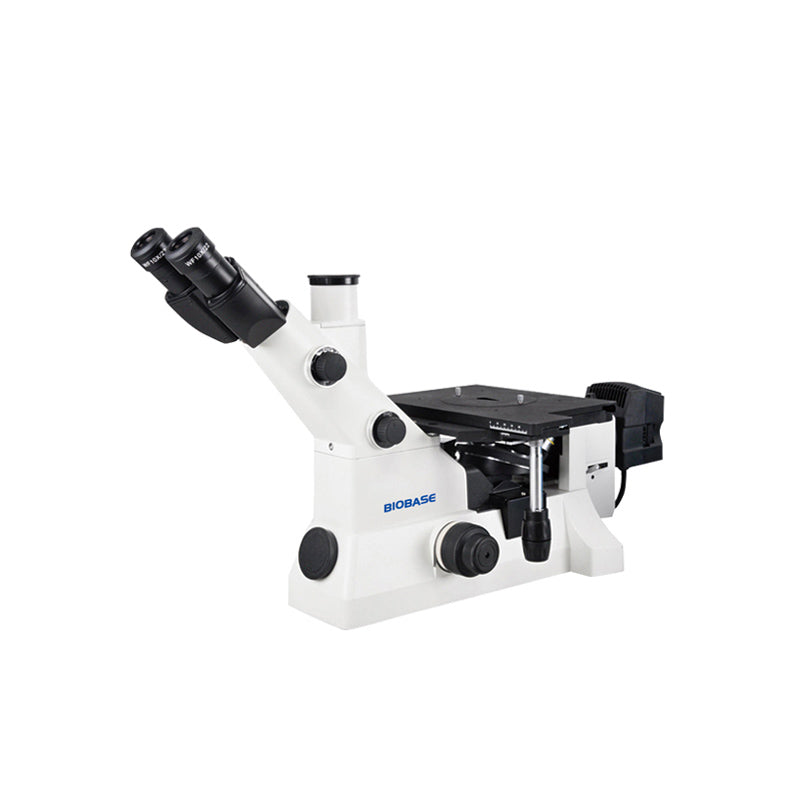

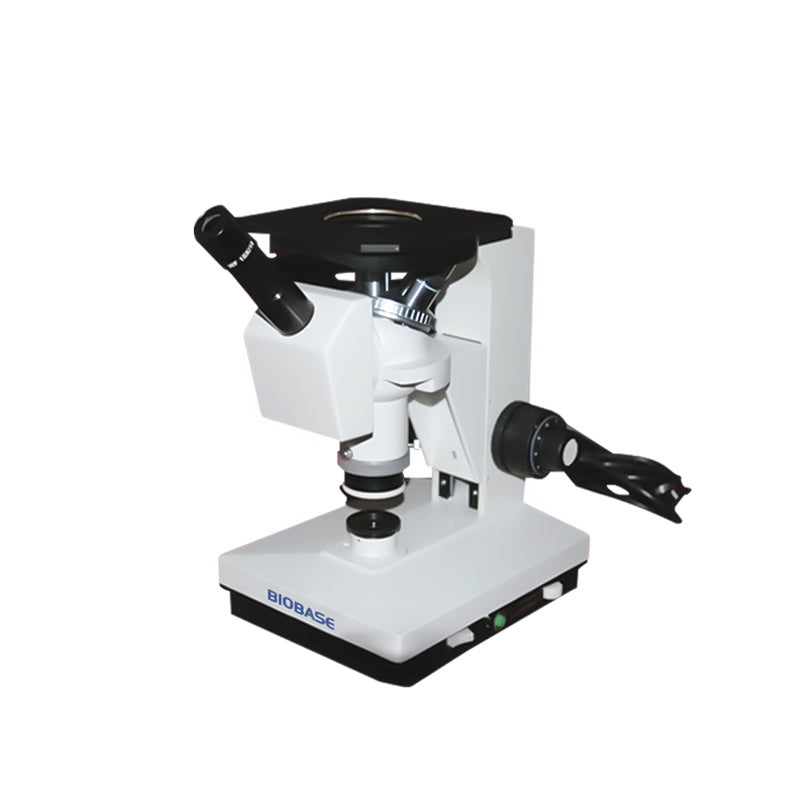

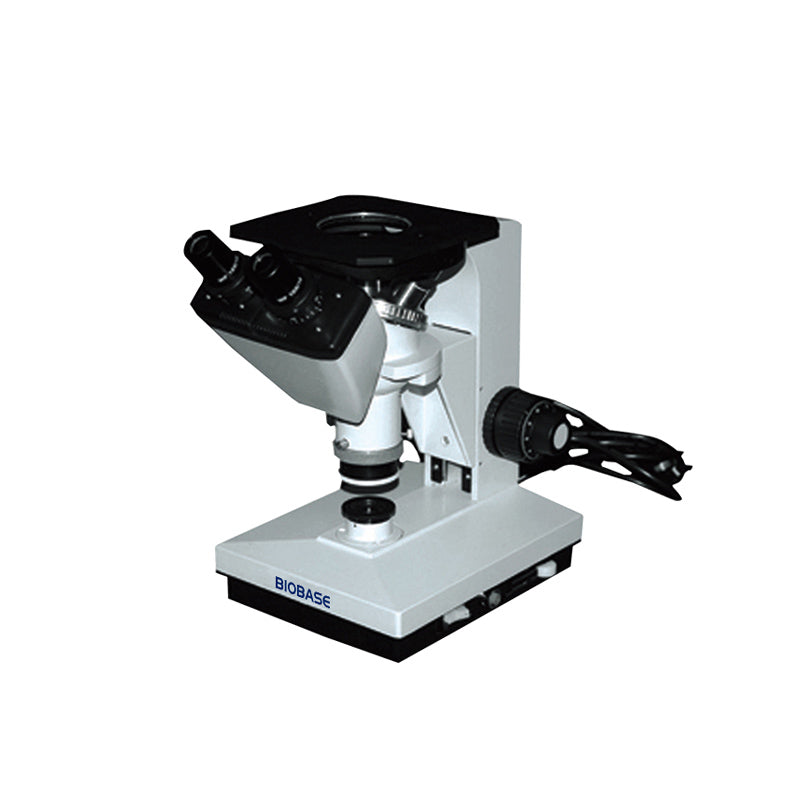

BIOBASE XJD-100 XJD-200 XDS-1 Optical Metallurgical Microscope
Models:
Product Techanical Parameter
|
Specification |
Model |
| XJD-100 |
XJD-200 |
XDS-1 |
XDS-2 |
4XC |
| Viewing Head |
Monocular Head Inclined at 45° |
√ |
|
|
|
|
| Sliding Binocular Head Inclined at 45° |
|
√ |
|
|
|
| Sliding Trinocular Head Inclined at 45° |
|
|
√ |
|
|
| Compensation Free Trinocular Head30° |
|
|
|
√ |
√ |
| Nosepiece |
Ball Beating Quadruple Nosepiece |
√ |
√ |
√ |
√ |
√ |
| Eyepiece |
WF10X,WF12.5X |
√ |
√ |
√ |
|
|
| WF10X20mm |
|
|
|
√ |
√ |
| Objective |
Metallurgical objectives 10X,40X,100X(S,Oil) |
√ |
√ |
√ |
|
|
| Infinity metallurgical objectives 4X,10X,20X(S),40X |
|
|
|
√ |
√ |
| Stage |
Double Layer Mechanical Stage 242*172mm moving range 75*50mm |
|
|
|
√ |
√ |
| Double Layer Mechanical Stage 135*140mm moving range 70*50mm |
√ |
√ |
√ |
|
|
| Focusing |
Coaxial coarse &fine focusing adjustment with rack and pinion mechanism fine focusing scale value 0.002mm |
√ |
√ |
√ |
√ |
√ |
| Illumination |
Build-in Illumination,Halogen lamp6V/20W,Power supply 220V |
√ |
√ |
√ |
√ |
√ |
| Filter |
Blue,Green,Yellow |
√ |
√ |
√ |
√ |
√ |
| Power Supply |
AC 110/220V±10%,50/60Hz |
√ |
√ |
√ |
√ |
√ |
| Package Size |
300*400*520mm |
√ |
√ |
√ |
√ |
√ |
| Gross Weight |
12Kg |
√ |
√ |
√ |
√ |
√ |
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
