Product Description
Product Description

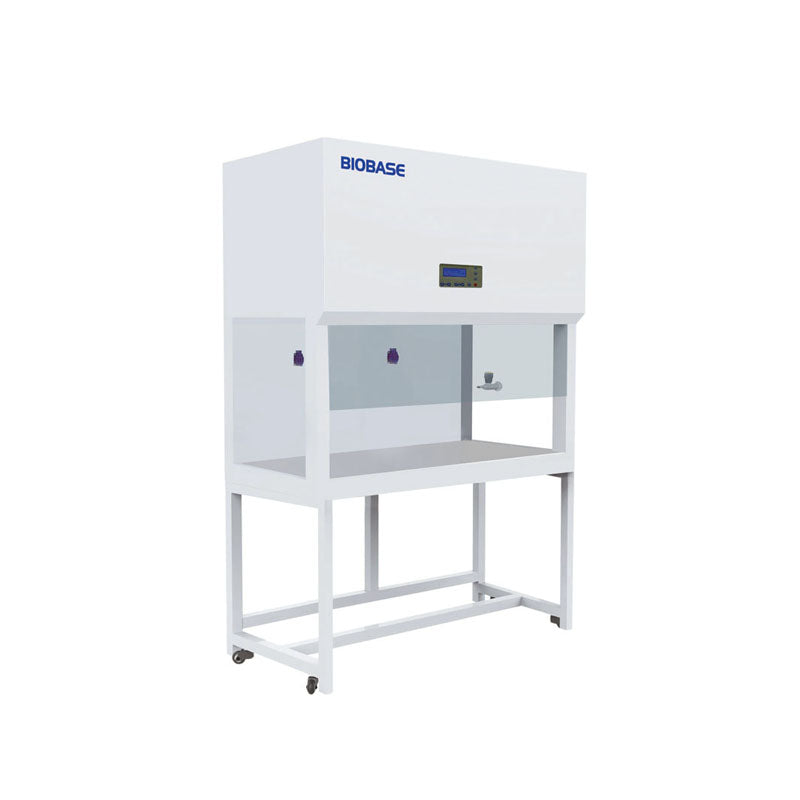

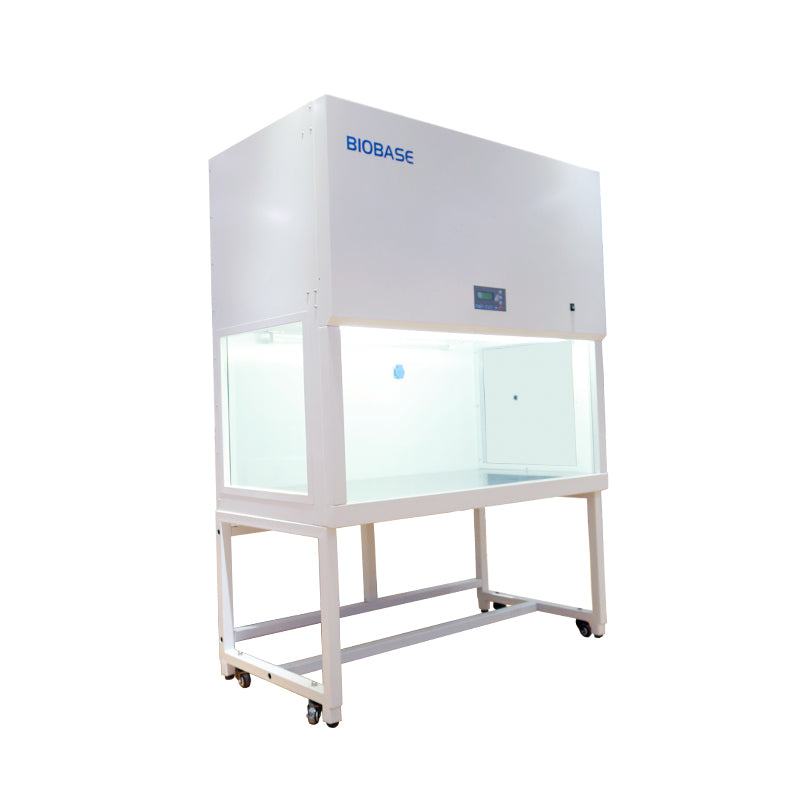

BIOBASE Vertical Laminar Flow Cabinets Vertical Desktop
UV lamp :
Emission of 253.7 nanometers for most efficient decontamination
Gas Tap:
Side glass window:
The transparent side glass windows maximize light and visibility inside the cabinet,providing a bright and open working environment
Technical Parameters
| Model | BBS-V1300 | BBS-V1800 |
| External Size（W*D*H) | 1300*750*2040mm | 1800*750*2040mm |
| Internal Size（W*D*H） | 1200*645*610mm | 1700*645*610mm |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side and Front Windows:5mm toughened glass anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.995% efficiency at 0.3um | |
| Noise | <65dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| LED Lamp | 12W*1 | 16W*1 |
| UV Lamp | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 450W |
| Waterproof socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2 | |
| OptionalAccessory | Electric height adjustable base stand | |
| Gross Weight | 228kg | 306kg |
| Package Size（W*D*H） | 1460*1070*1650mm | 1960*970*1600mm |
Features：
LCD Display:
Airflow velocity, UV timer, UV work time, system work time, real time.
Waterproof socket :
2 waterproof sockets are located in the side panel, for optimum convenience of using small devices inside the cabinet
