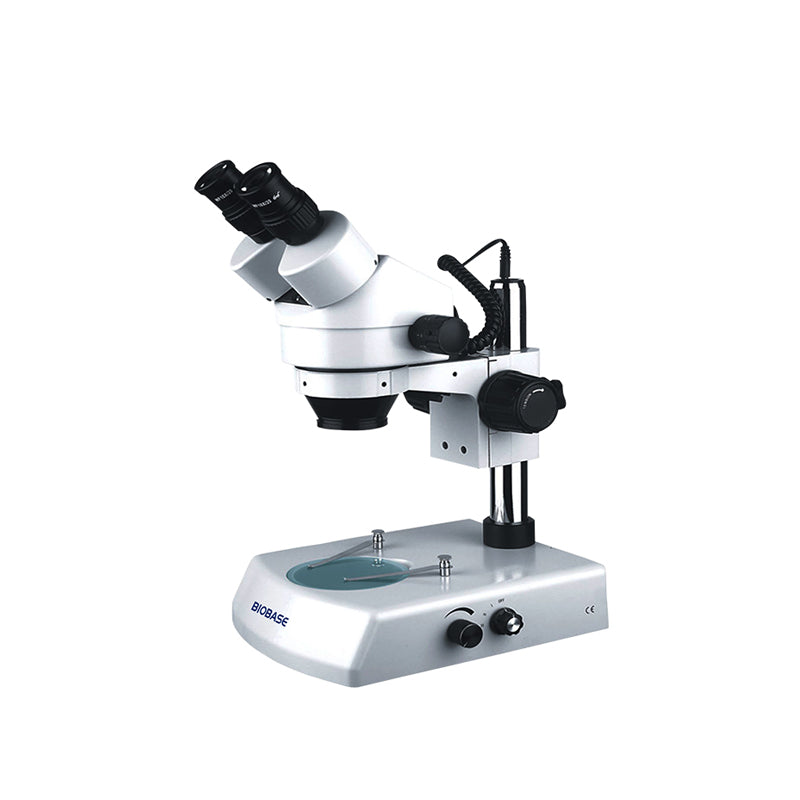

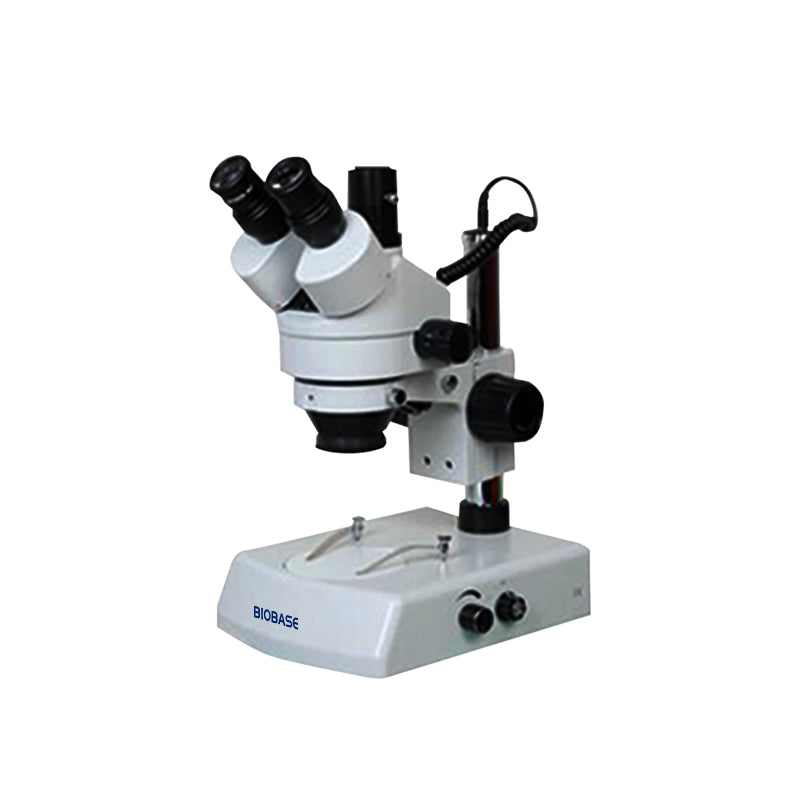

BIOBASE SZM-45 SZM-45T Binocular Trinocular Stereo Zoom Microscope
Models:
| Model |
Specifications |
SZM-45 |
SZM-45T |
| Viewing Head |
Binocular view head inclined at60° |
√ |
|
| Trinocular view head inclined at 45° |
|
√ |
| Digitalview head inclined at 45° |
|
√ |
| Eyepiece |
High point wide field adjustable eyepiece WF10X20mm |
√ |
√ |
| Zoom Objective |
0.67X--4.5X |
√ |
√ |
| Zoom Ratio |
6.7:1 |
√ |
√ |
| Auxiliary Objective |
0.5X/177mm,1.5X/47mm,2X/26mm |
√ |
√ |
| Working Distance |
115mm |
√ |
√ |
| Focusing Bracket |
Focusing frame andadjustment knob |
√ |
√ |
| Interpupillary Distance |
55-75mm/52-75mm |
√ |
√ |
| UpIllumination |
12V/15W Inclined reflected halogen lamp |
√ |
√ |
| Down Illumination |
12V/15W Halogen transmitted illumination |
√ |
√ |
| PowerSupply |
AC110/220V±10%,50/60Hz |
√ |
√ |
| Package |
Cartoon with foam |
√ |
√ |
| Package Size |
mm |
500*260*370 |
| Gross Weight |
Kg |
8 |
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
