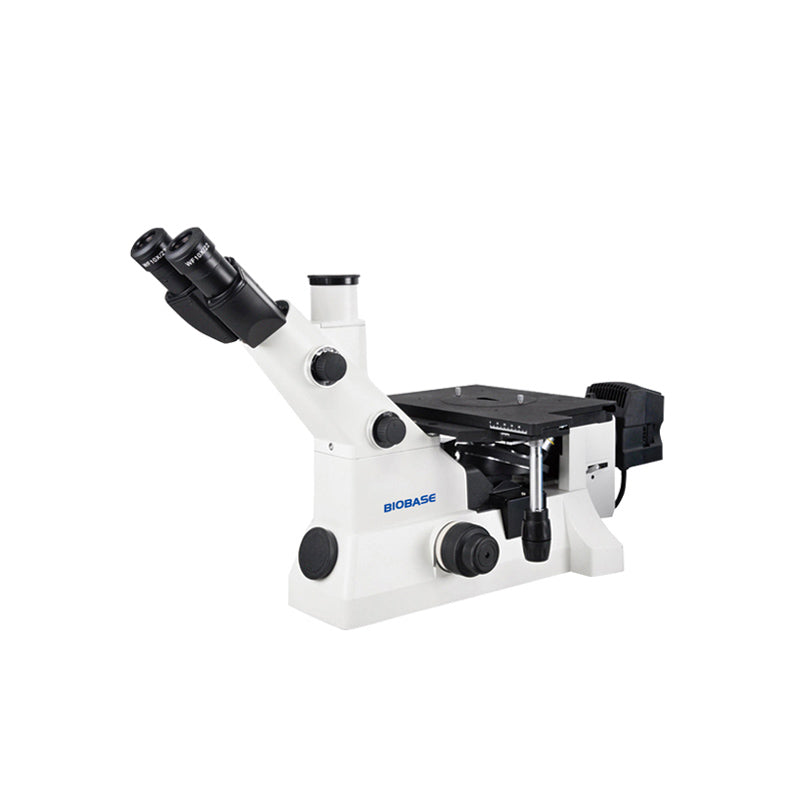

BIOBASE MM-5000 Metallogical Microscope
Product Techanical Parameter
| Model |
MM-5000 |
| Optical System |
Infinite optical system |
√ |
| Extra Wide Field Eyepiece |
EW10×/22 |
√ |
| EW10×/20eyepiece with Scale of Cross hair |
√ |
| EW15×/16 |
|
| EW20×/12 |
|
Infinite LWD Plan
Achromatic Objective |
5×/0.12/∞/-(BF/DF) LWD 10mm |
√ |
| 10×/0.25/∞/-(BF/DF) LWD 10mm |
√ |
| 20×/0.4/∞/0(BF/DF) LWD 5mm |
√ |
| 50×/0.75/∞/0(BF/DF) LWD 1.3mm |
√ |
| 100×/0.9/∞/0(BF/DF) LWD 0.7mm |
√ |
| View Head |
Siedentopf binocular viewing head, incline at 30°, Interpupillary 48mm~75mm |
√ |
|
Kohler Incident Light
|
12V/50W Halogen light, Center and brightness adjustable |
√ |
| Polarizer and analyzer |
√ |
| DIC |
|
| Built-in Green, Blue, Yellow, Gray and ground glass |
√ |
| Focusing |
Coaxial coarse and fine adjustment, fine division 2μm |
√ |
| Nosepiece |
Backward quintuple nosepiece |
√ |
| Stage |
Double layer mechanical stage 226×178mm, Moving range 40mm×40mm |
√ |
| Stage Φ16 ,Φ40, Teardrop |
√ |
| Accessories |
Specimen presser |
|
| Photo/Video attachment |
|
| 0.01mm Micrometer scale 0.01mm |
√ |
| Lamp House Adjustment Objective |
√ |
| Power Supply |
AC110/220V±10%, 50/60Hz |
√ |
| Package Size |
730*350*550 |
√ |
| Gross Weight |
18kg |
√ |
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
