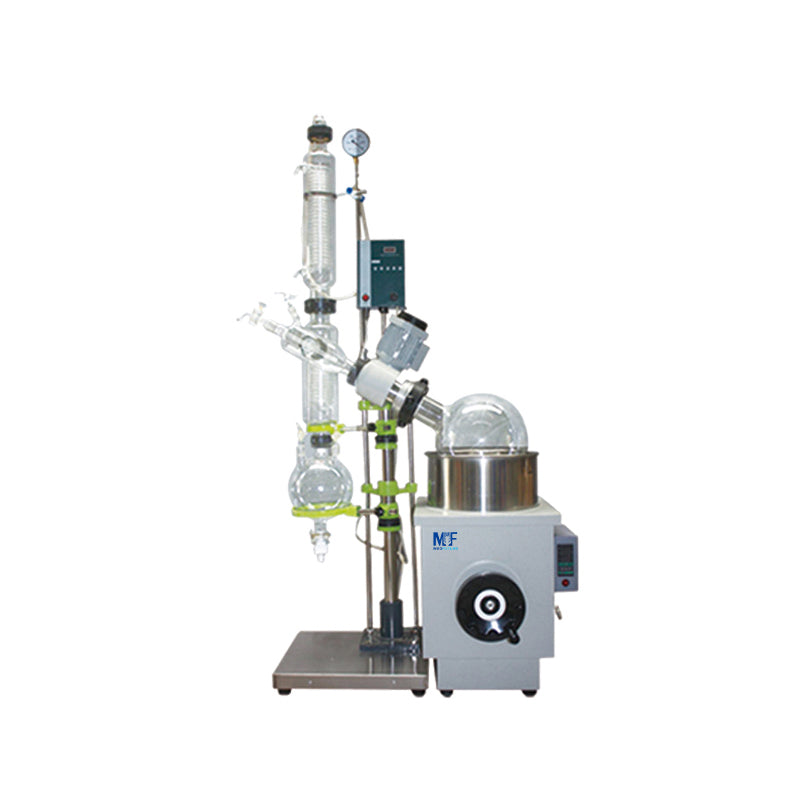

BIOBASE ExRE-5003 10l 20l 50l Explosion-proof Rotary Evaporator
Introduction：
This product can form film under constant temperature heating and negative pressure conditions.Owning to its efficient evaporation and condensation recovery of menstruum ,the product is employed in biological ,medical,chemical and food industries , especially for operations heat-sensitivematerial,crystallization,separation and recovery of menstruum.
Models：
| Parameters |
Model |
RE-2000A |
RE-2000B |
RE-2000E |
RE-52A |
RE-52C |
RE-5299 |
| Rotary Bottle |
1 L 24#(standard size） |
| Collecting Bottle |
1 L 35#( ball mill mouth) |
0.5 L 24#(standard size) |
| Condenser |
Vertical φ85*430mm, |
Vertical φ85*460mm, 29#(standard size) |
| Charging Valve |
19#(standard size） |
| Rotating Speed |
0~180 rpm |
0~120 rpm |
| Vacuum |
-0.098 Mpa |
| Temp. Range |
RT~99 ℃ |
| Temp. Accuracy |
±1℃ |
| Stroke Height |
120 mm |
| Rotating Power |
40W |
30W |
| Heating Power |
1.5KW |
1KW |
| Shelf Material |
Aluminum alloy |
Powder coating anticorrosive |
| Power Supply |
AC220/110V±10%, 50/60Hz |
AC220V±10%, 50Hz |
AC220/110V±10%, 50/60Hz |
| External Size (W*D*H) |
660*420*830mm |
700*440*1005mm |
| Packing Size (W*D*H) |
630*560*540mm |
590*460*460mm |
| Gross Weight |
26 Kg |
21Kg |
| Standard Accessory |
1000ml Rotary bottle*1, 500ml recycling bottle*1 |
1000ml rotary bottle*1, 500ml recycling bottle*1 |
| Optional Accessory |
RT~400℃ Oil bath, 304 SS bath, Transparent bath cover, Vacuum pump, Recirculating chiller |
RT~400℃ Oil bath, Transparent bath cover, Vacuum pump, Recirculating chiller |
Features:
1. Intelligent temperature control and digital temperature display.
2. Stepless speed controller.
