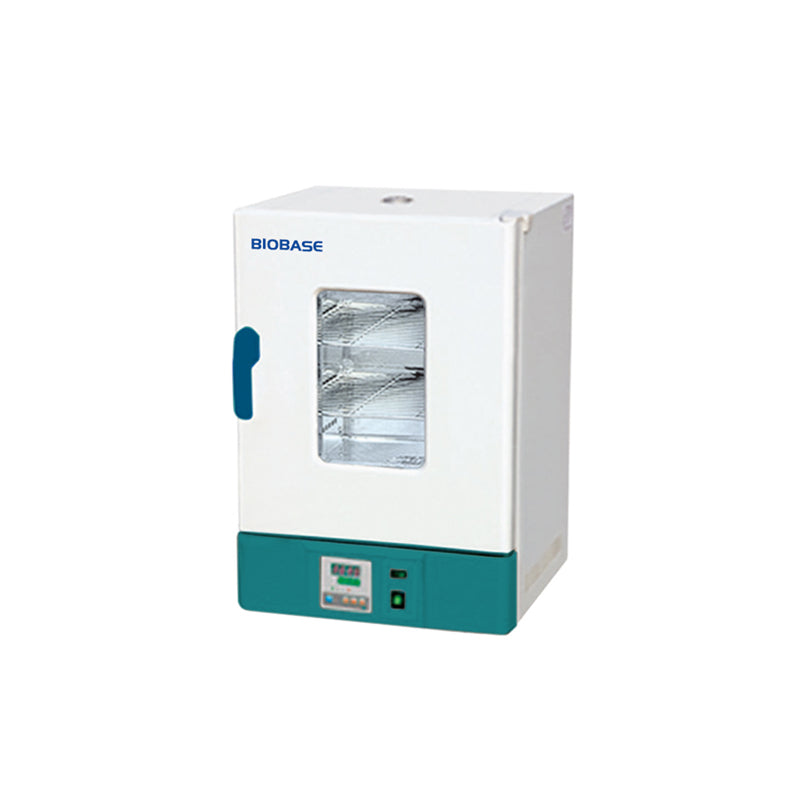

BIOBASE Electric Forced Air Drying Oven Laboratory
Models:
| Model |
BOV-V30F |
BOV-V35FI |
BOV-V45F |
BOV-V65F |
BOV-V70F |
BOV-V125F |
| Capacity |
30L |
42L |
45L |
65L |
71L |
125L |
| Temp. Range |
RT+10~300℃ |
RT+10~200/300℃ |
RT+10~300℃ |
RT+10~300℃ |
RT+10~200/
300℃ |
RT+10~300℃ |
| Temp. Precision |
0.1℃ |
| Temp. Fluctuation |
±1℃ |
| Ambient Temp. |
5~40℃ |
| Timing Range |
1~9999min |
| Shelves No. |
2 pcs |
| Display |
LED |
LED |
LED |
LED |
LED |
| Consumption |
800W |
850/1600W |
1200W |
1600W |
1550/2400W |
2300W |
| Power Supply |
Standard: AC220V±10%, 50/60Hz; Optional: AC110V±10%, 60Hz |
Internal Size
(W*D*H)mm |
310*310*310 |
350*350*350 |
350*350*350 |
400*360*450 |
450*352*450 |
500*450*550 |
External Size
(W*D*H)mm |
460*510*695 |
630*630*552 |
500*550*735 |
550*550*840 |
735*630*652 |
636*680*915 |
Package Size
(W*D*H)mm |
550*580*770 |
725*690*685 |
620*585*805 |
640*640*905 |
815*690*775 |
725*735*1005 |
| Gross Weight(kg) |
34 |
60 |
39 |
47 |
85 |
58 |
| Model |
BOV-V136FI |
BOV-V225FI |
BOV-V230F |
BOV-V429FI |
BOV-V625F |
BOV-V640FI |
BOV-V960FI |
| Capacity |
137L |
240L |
230L |
420L |
625L |
600L |
900L |
| Temp. Range |
RT+10~200/300℃ |
RT+10~200/300℃ |
RT+10~300℃ |
RT+10~300℃ |
RT+10~300℃ |
RT+10~200/300℃ |
RT+10~200/300℃ |
| Temp. Precision |
0.1℃ |
| Temp. Fluctuation |
±1℃ |
| Ambient Temp. |
5~40℃ |
| Timing Range |
1~9999min |
| Shelves No. |
3 pcs |
2 pcs |
3 pcs |
| Display |
LED |
LED |
LED |
LED |
LED |
| Consumption |
2100/3000W |
2500W/4000W |
3000W |
3100W |
5000W |
6000W |
7500W |
| Power Supply |
Standard: AC220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz. |
Standard: 380V, 50Hz |
220V, 50/60Hz |
380V, 50/60Hz |
| Internal Size
(W*D*H)mm
|
550*454*550 |
600*495*750 |
600*500*750 |
640*585*1355 |
660*760
*1250
|
800*800
*1000
|
1000*800
*1200
|
| External Size
(W*D*H)mm
|
835*730*752 |
885*780*952 |
730*670*1220 |
780*730*1780 |
895*925
*1830
|
1157*975*1290 |
1357*975
*1490
|
| Package Size (W*D*H)mm |
955*705*955 |
965*840*1075 |
770*840*1420 |
890*890
*2000
|
995*980
*1980
|
1230*1050*1420 |
1430*1050
*1620
|
| Gross Weight(kg) |
115 |
150 |
103.5 |
249 |
277 |
260 |
340 |
Features:
* External material: cold-rolled steel with anti-bacteria powder coating.
* Stainless steel inner chamber, round angle structure, adjustable shelves.
* With glass observation window.
* PID microprocessor intelligent temperature controller.
* Over-temperature protection.
* Optional independent temperature protector and RS485 for FI series.
