BIOBASE Class I Biological Safety Cabinet
BIOBASE Class I Biological Safety Cabinet
Medical Grade
Professional environments.
Trusted Brands
Recognized suppliers.
Expert Support
Assistance available.
Reliable Delivery
Dependable shipping.
Product Description
Product Description

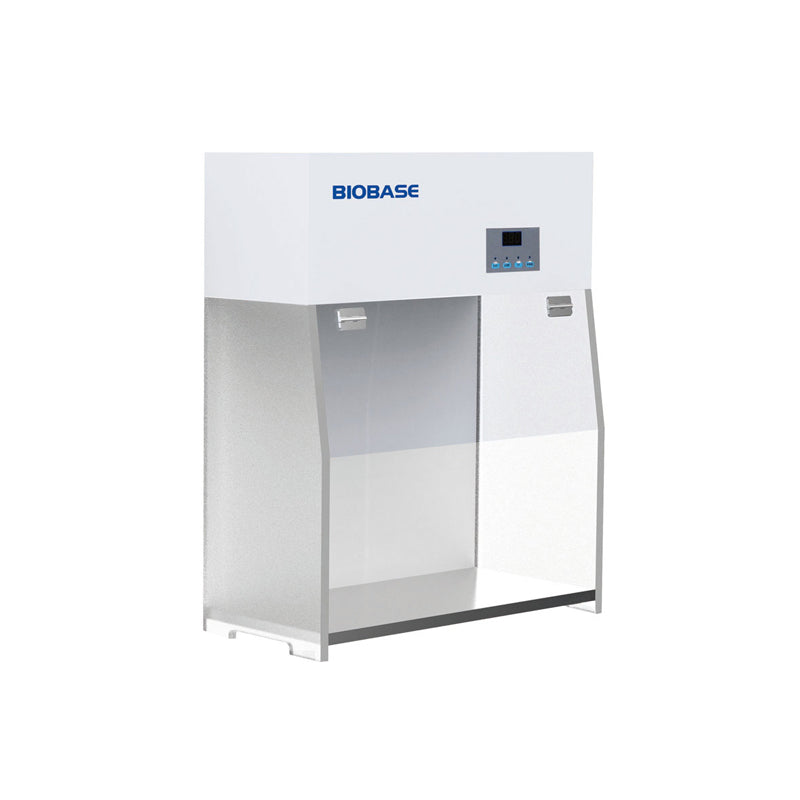

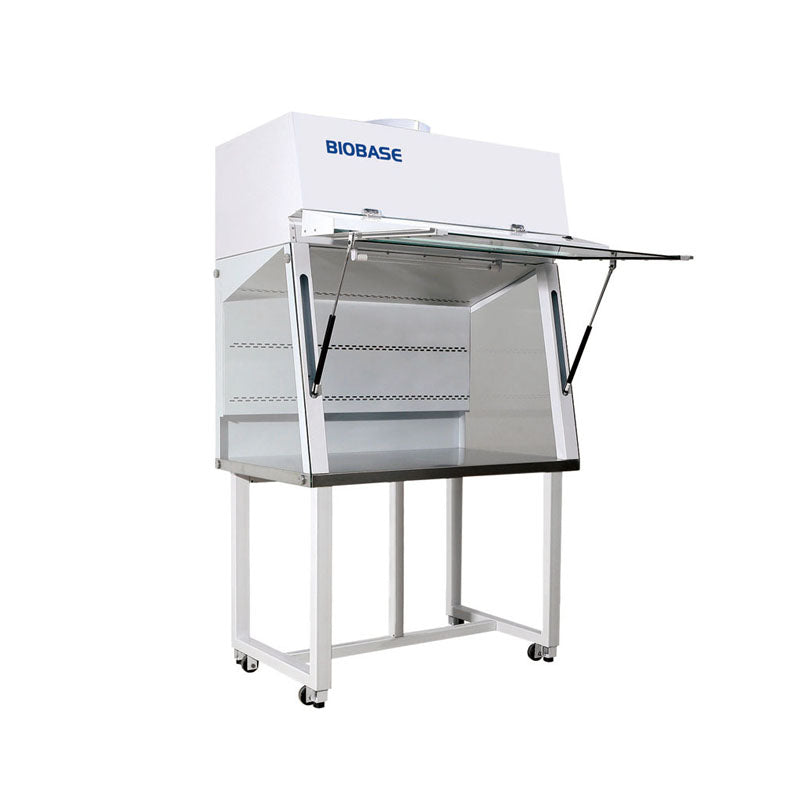

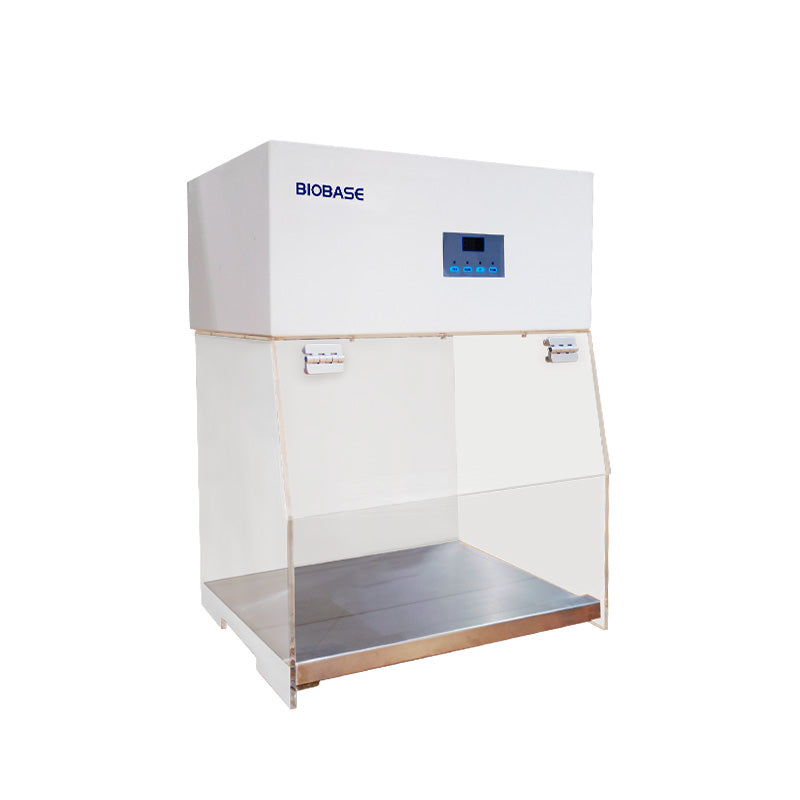

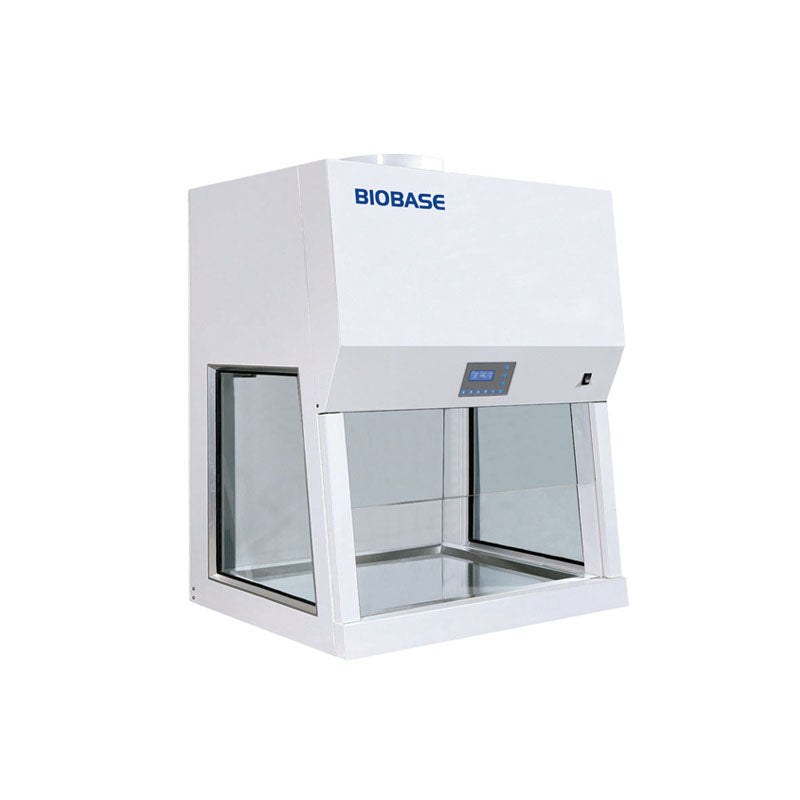

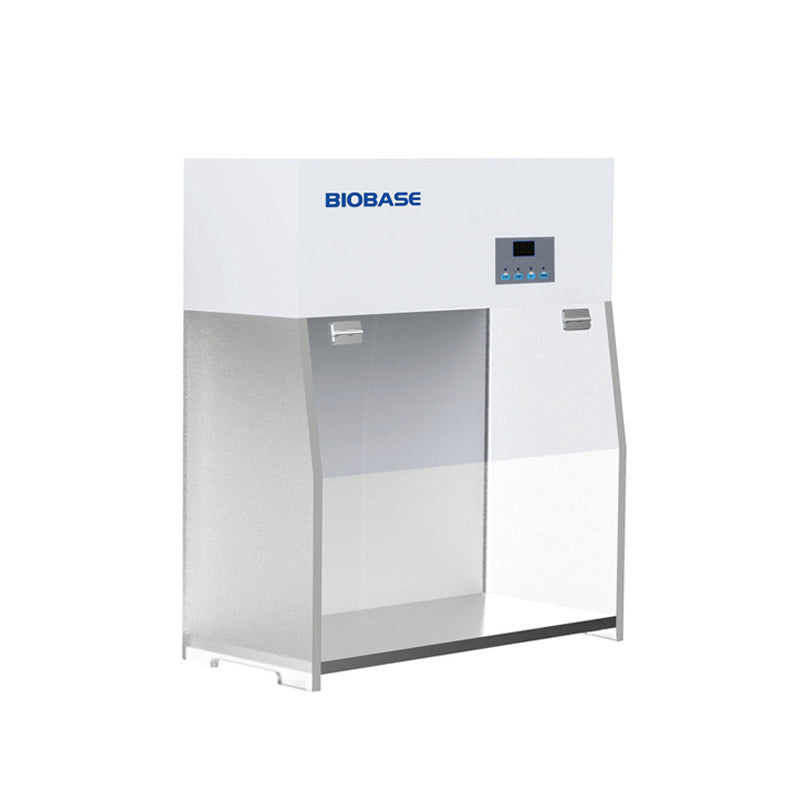

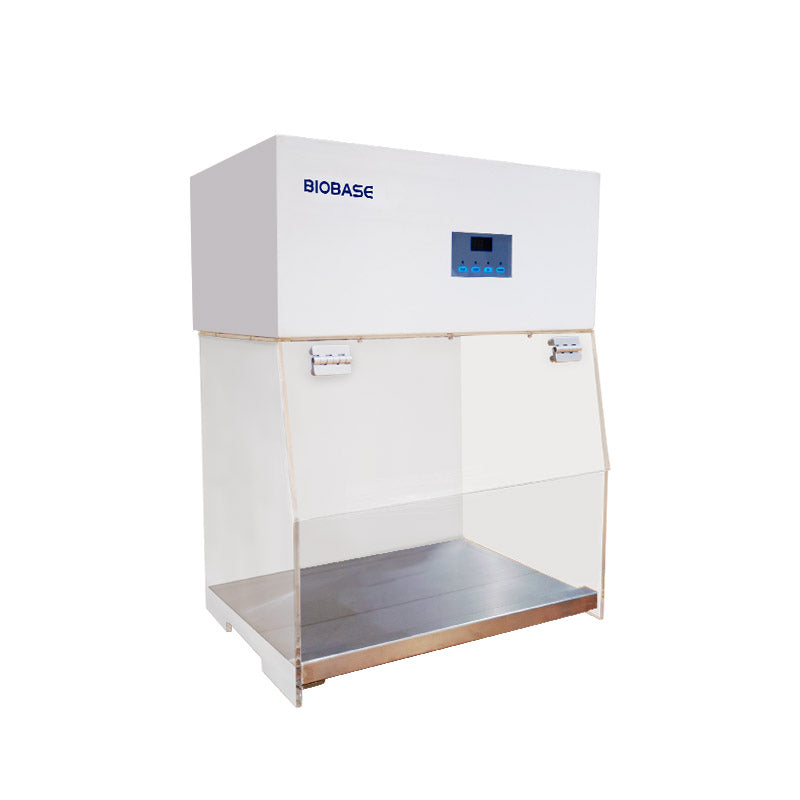

BIOBASE Class I Biological Safety Cabinet
Air Pattern of Class I Biosafety Cabinet:
Models:
| Model | BYKG-I | BYKG-II | BYKG-III | BYKG-V |
| External Size(W*D*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*697*1900mm |
| Internal Size(W*D*H) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*625*630mm |
| HEPA Filter | 99.999% efficiency at 0.3 μm | |||
| Airflow Velocity | >0.3m/s | 0.75~1.0m/s |
>0.3m/s
|
0.75-1.0m/s |
| Noise | ≤60dB | ≤55dB | ≤60dB | ≤67 dB |
| Illuminating Lamp | 4W*1
LED Lamp |
8W*1
LED Lamp |
8W*1
LED Lamp |
12W*2
Fluorescent lamp |
| UV Lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 |
| Emission of 253.7 nanometers for most efficient decontamination
BYKG-III has UV timer function and the display could indicate the UV life. |
||||
| Power Consumption | 150W | 160W | 400W | 350W |
| Work Surface Height | / | / | / | 750mm |
| Caster | / | / | / | Universal caster |
| Main Body Construction | PMMA | Cold-rolled steel with anti-bacteria powder coating | ||
| Work Table | 304 stainless steel | |||
| Power Supply | AC220V±10% , 50/60Hz; 110V±10% ,60Hz | |||
| Standard Accessory | LED lamp, UV lamp*2 | Fluorescent lamp, UV lamp*2, Base stand | ||
| OptionalAccessory | Electric height adjustable base stand | |||
| Gross Weight | 38kg | 68kg | 147kg | 185kg |
| Package Size(W*D*H) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1270*880*2230mm |
Accessories:
Standard Accessory:
Fluorescent lamp 1pc.
UV lamp 2pcs.
Base stand 1pc.
Advantage:
1. UV lamp for sterilization.
2. Soft touch control panel, LCD display.
3. Energy-saving, high efficiency, low noise.
4. With memory function in case of power-failure.
5. One piece 304 stainless steel work stable, easy for cleaning.
6. Stable air flow system; protecting to person and environment.
