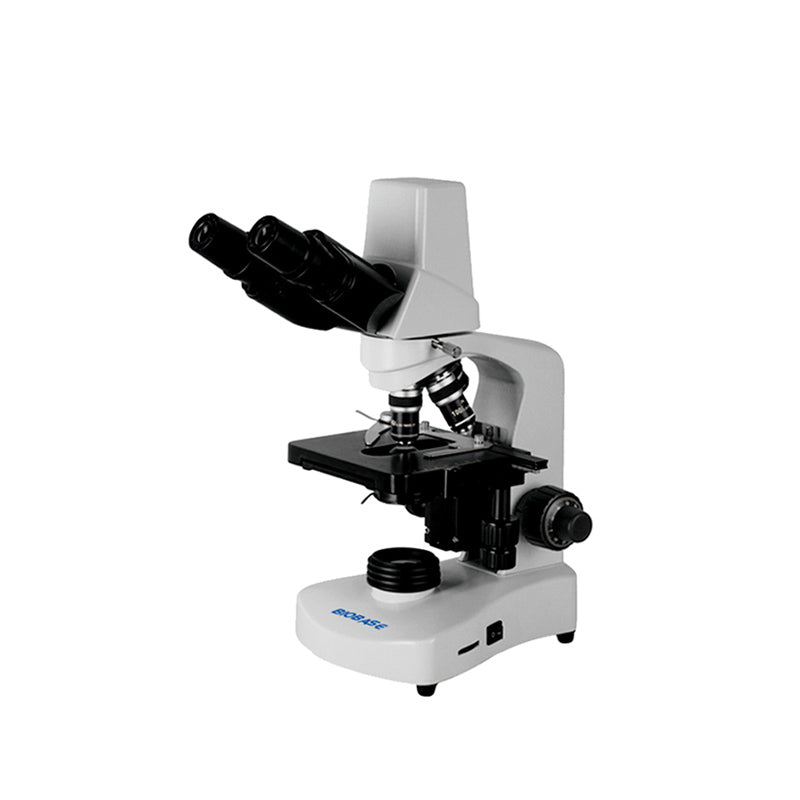

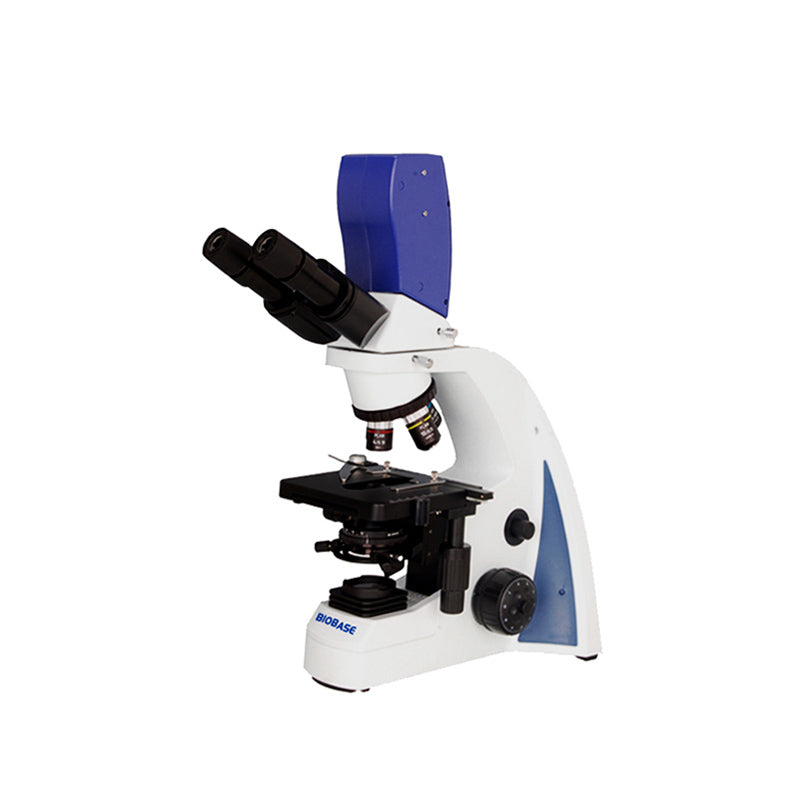

BIOBASE BMB-117M BMB-300M Build-in Camera Digital Microscope Camera Digital With Camera
Models:
| Model |
BMB-117M |
BMB-300M |
| Viewing Head |
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm |
√ |
√ |
Camera
System |
Valid Pixel |
1280*1024(1.3M Pixel) |
√ |
|
| 1600X1200 (2.0M Pixel) |
● |
|
| 2048*1036 (3.0M Pixel) |
|
√ |
| 2052*1944 (5.0M Pixel) |
|
● |
| Output Mode |
USB2.0 |
√ |
√ |
| Operation System |
WINDOWS7/8 2000 / XP/ VISTA |
√ |
√ |
| Software |
Scope Image 9.0 |
√ |
√ |
| Range of Viewing Field |
>90%(BMB-117M ); 18mm(BMB-300M) |
√ |
√ |
| Eyepiece |
WF10×/ 18 |
√ |
√ |
| P16×/ 11 |
● |
|
Extra wide filed eyepiece EW10×/ 20 with diopter
adjustment |
|
● |
| Objective |
Achromatic Objective 4×,10×,40×,100× |
√ |
|
| Infinite plan Achromatic Objective 4×,10×,40×,100× |
|
√ |
| Infinite Plan Achromatic Phase Objective 10×,20×,40×,100× |
|
● |
| Oil Darkfield Objective with Iris Diaphragm 100×（NA0.36-1.25） |
|
● |
| Nosepiece |
Backward Quadruple Nosepiece |
√ |
|
| Quintuple Nosepiece |
|
● |
| Quadruple Nosepiece |
|
√ |
| Stage |
Double Layers Mechanical Stage 140*140mm, Moving range 75*50mm |
√ |
√ |
| Condenser |
Abbe NA1.20 with Iris Diaphragm & Fliter |
√ |
|
| Swing Condenser N.A.0.9/0.25 |
|
√ |
| Turret Phase Contrast Condenser |
|
● |
| Dark Field Condenser (Dry) |
|
● |
| Dark Field Condenser (Oil) |
|
● |
| Focusing |
Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm |
√ |
|
| Coaxial Coarse & Fine Adjustment System, Range 20mm |
|
√ |
| Illumination |
LED 3W, Brightness Adjustable |
√ |
|
| Halogen Lamp 6V/ 20W, Brightness Adjustable |
● |
|
| S-LED Powerful Illumination |
|
√ |
| Power Supply |
AC 110-220V, 50/60HZ |
√ |
√ |
| Accessories |
Phase Contrast Kit |
● |
● |
| Dark-Field Attachment |
● |
● |
| Polarization Attachment |
● |
● |
| Package Size |
396*262*492(BMB-117M), 334*334*533(BMB-300M) |
√ |
√ |
| Gross Weight |
7.5kg (BMB-117M), 12.5kg (BMB-300M) |
√ |
√ |
Note: √ Standard Outfit, ● Optional Without this feature
Build-in Camera Biological Microscope
