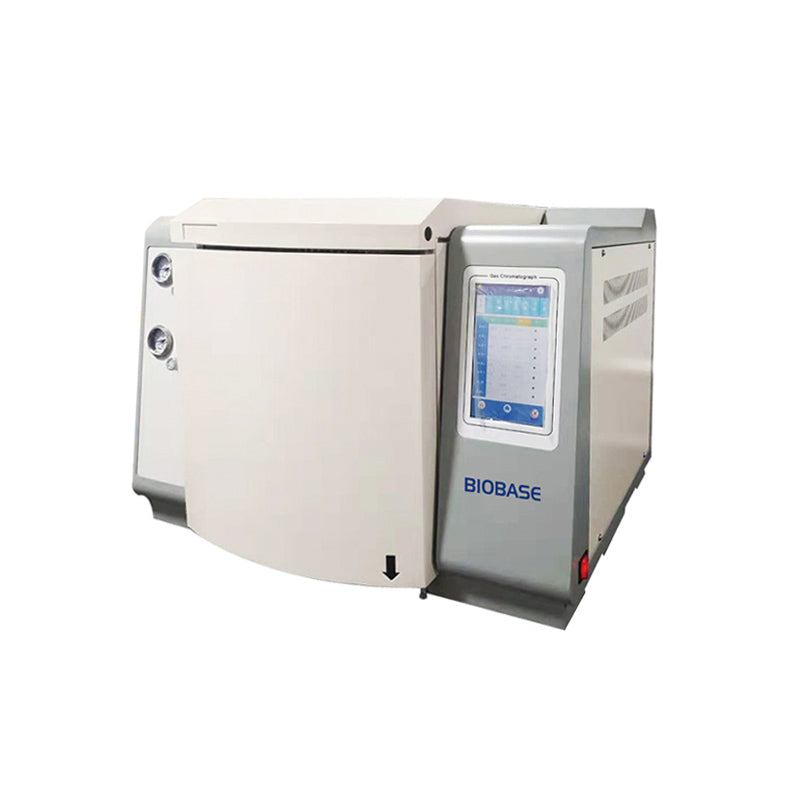

BIOBASE BK-GC7820 Gas Chromatograph Analyzer
Models:
| Model |
BK-GC7820 |
| Oven |
Temp. Range |
RT~450℃ |
| Temp. Accuracy |
≤±0.1℃ |
| Temp. Program |
16-phase |
| Max. Temp. Heating Rate |
40℃/min |
| Detector |
Hydrogen Flame Ionization Detector (FID) |
Detection limit:≤3×10^12g/s
(Sample:n-hexadecane)
|
| Baseline drift:≤1x10^13A/30min |
| Linear range:≥10^7 |
| ThermalConductivityDetector (TCD) (Optional) |
Sensitivity: >10000mv.ml/mg
(Sample: n-hexadecane)
|
| Linear range:≥10^5 |
| Electron Capture Detector (ECD) (Optional) |
Detection limit:≤1×10-14g/ml
(Sample:n-hexadecane δ-666)
|
| Linear range: ≥10^4 |
| Flame Photometric Detector (FPD) (Optional) |
Detection limit:≤2×10^11g/s(S ofthiophene)
Detection limit:≤1×10^12g/s(P ofmethyl parathion)
|
| Linear range (S): ≥10^3
Linear range (P): ≥10^4
|
| Nitrogen and Phosphorus Detector (NPD) (Optional) |
Detection limit:≤1×10^12g/s(Azobenzene)
Detection limit:≤1×10^12g/s(Marla sulfur phosphorous)
|
| Linear range: ≥10^3 |
| Power Supply |
AC110/220V±10%, 50/60Hz |
| Standard Accessory |
FID detector, Chromatography workstation software |
| Optional Accessory |
Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column. |
| Package Size (W*D*H) |
800*570*650mm |
| Gross Weight |
75kg |
