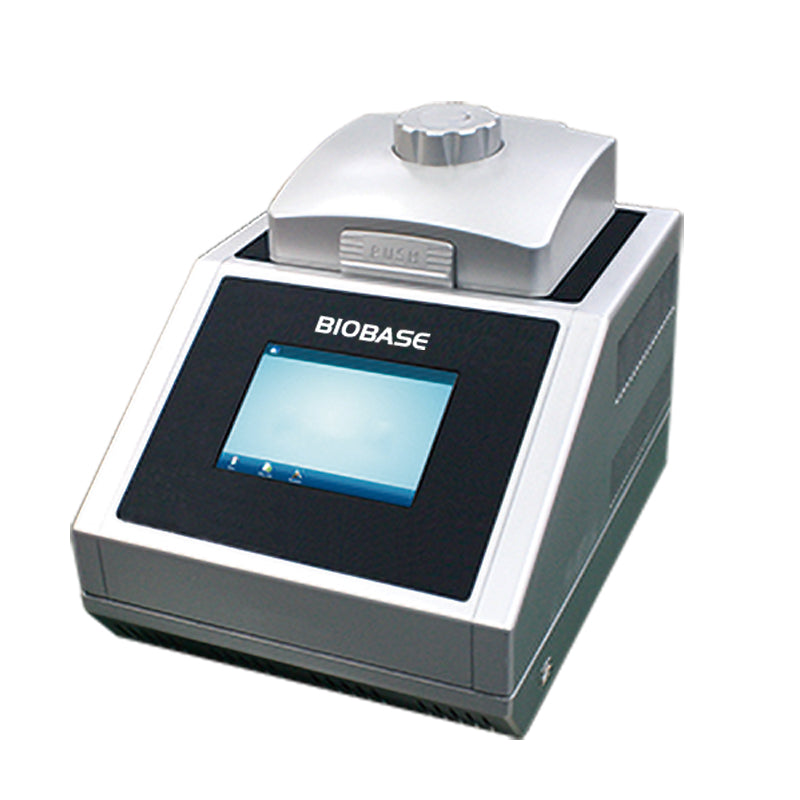

BIOBASE BK-EO BK-TC Digital Thermal Cycler Pcr Test Machine
BK-TC Features
* Higher precision of temperature control
* Faster heating and cooling speed
* Better block temperature uniformity
* Smaller instrument dimension
* More silent operation environment
* Advanced thermoelectric cooling technology and creative TAS technology
Models:
| Model |
BK-EO |
BK-TC |
| Sample Capacity |
96-PCR plate(full-skirted)
96*0.2ml tubes
12*8-strip
|
| Cooling Technology |
Peltier-based |
| Display |
LCD display and touch creen(5.7 inch) |
6.5 inch, 262 144 color LCD display and touch screen |
| Temp. Range |
4.0~99.9℃ |
| Heating Speed Of Ramping |
Up to 4℃/sec |
| Cooling Speed Of Ramping |
Up to 4℃/sec |
| Temp. Uniformity |
≤±0.3℃ |
≤±0.2℃ |
| Temp. Accuracy |
≤±0.1℃(50℃), ≤±0.2℃ (≥90℃) |
| Temp. Control Modes |
BLOCK or TUBE |
| Ramping Range Adjustable |
0.1℃~4℃ |
| Memory |
≥250 typical programs onboard, unlimited with USB flash drive expansion |
| Max. No. Of Cycle |
99. Suitable for nested PCR |
| Time Up/Down |
0~9 min59s, suitable for long PCR |
| Temp. up/down |
0~9.9℃,suitable for touchdown PCR |
| Auto Pause/Power Protection |
yes |
| Soak Function |
Yes |
| Gradient Range Of Temp. Difference |
1~30℃ |
| Gradient Range |
30~99.9℃ |
| Hot-lid Temp. Range |
Room temperature +5℃~110℃(default 105℃) |
| Height Of Hot-lid |
Automatic Adjusted |
| Auto Shut-off Function Of Hot Lid |
While block temperature is lower than set temperature or program ends, the hot-lid will be automatically closed |
| Communication Interface |
USB |
LAN |
| Power Supply |
100~240V, 50/60Hz, 600W |
| Dimension |
335*260*270mm |
345*260*270mm |
| Packing Size(L*W*H) |
495*410*395mm |
495*410*395mm |
| Gross Weight |
10.5kg |
12.5kg |
| Certificates |
Ferrotec Peltier/CE/RoHS2.0 |
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
BK-EO Features
1. Intuitive interfaces
2. Superior performance
3. Multiple temperature control modes
4. Gradient function thermal cycler
5. Smart block
6. Three modes of operation for your choice
