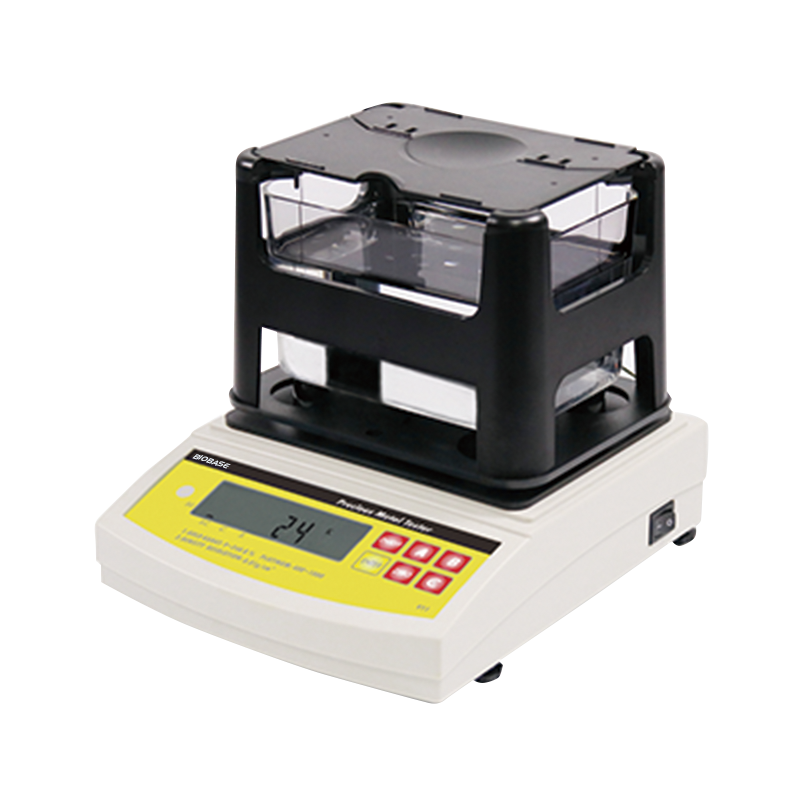

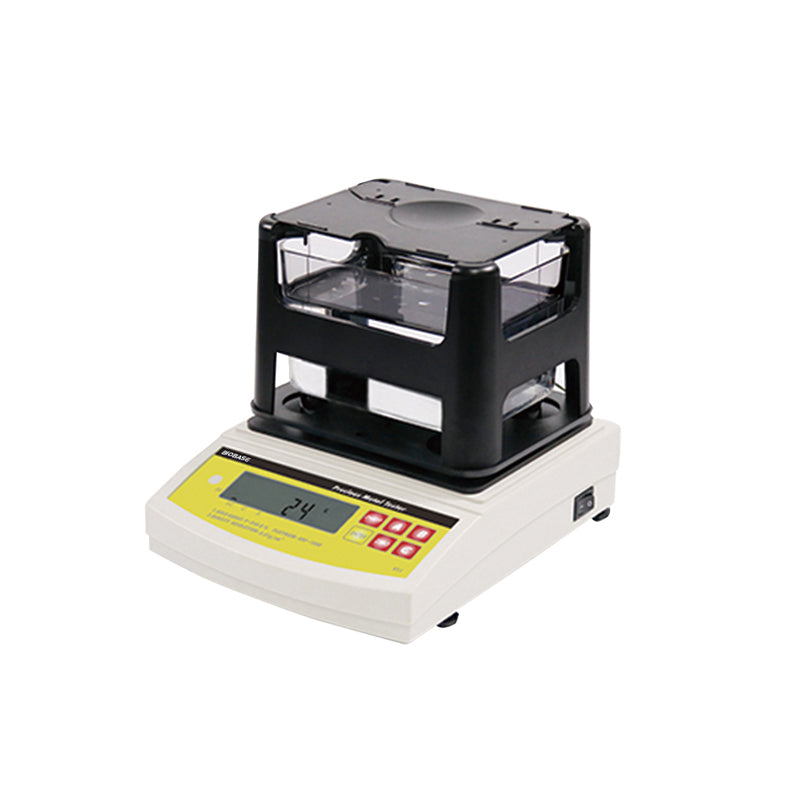

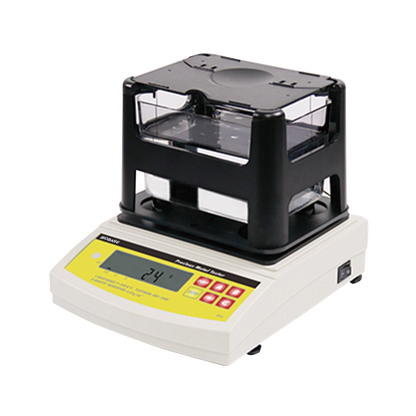

BIOBASE BK-DMG Series Multi Mode Precious Metal Tester
Application:
Distinguish K value of gold, PT value of platinum, density value, purity percentage can be measured.
Pawning house, bank, jewelry shop, precious-metals recovery, jewelry factory, Gemstone Testing Center, precious metals
researching, etc.
Note: Unable to measure sample which is hollow or with inserted gems.
Models:
| Model |
BK-DMG300K |
BK-DMG600K |
BK-DMG900K |
BK-DMG1200K |
BK-DMG2000K |
| Capacity |
0.005~300g |
0.005~600g |
0.01~900g |
0.01~1200g |
0.01~2000g |
| Density Resolution |
0.001g/cm³ |
| Measuring Time |
10~15s |
| Measuring Principle |
Archimedes principle |
| Testing Board |
Unibody high-capacity plastic testing board
of gold and silver
|
|
Gold
Mode
|
Display K Value |
The K value of mixture of gold, silver, and copper; mixture of gold and copper; mixture |
| Display Purity
Percentage
|
The purity content of mixture of gold, silver and copper; mixture of gold and copper; mixture of gold and silver |
| K Value Range |
9K~24K |
| Copper and Silver
Proportion Setting
|
Cycle setting depends on user’s preference (default 7:3) |
| Platinum |
Display Value |
PT percentage, density value, volume |
| PT Value Range |
Pt600~Pt1000 |
| Measuring Tank |
Unibody injection forming transparent professional measurement tank
Size: 169*98*83mm (L*W*H)
|
| Calibration Mode |
Auto correction, auto detection. |
| Standard Accessories |
Tank, testing board, tweezer, thermometer, weight, windshield, power transformer,
a set of gold particle measuring assembly
|
| Optional Accessories |
DE-40 printer |
| Power Supply |
AC110/220V±10%, 50/60Hz |
| Package Size(W*D*H)mm |
450*200*360 |
| Gross Weight(kg) |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
