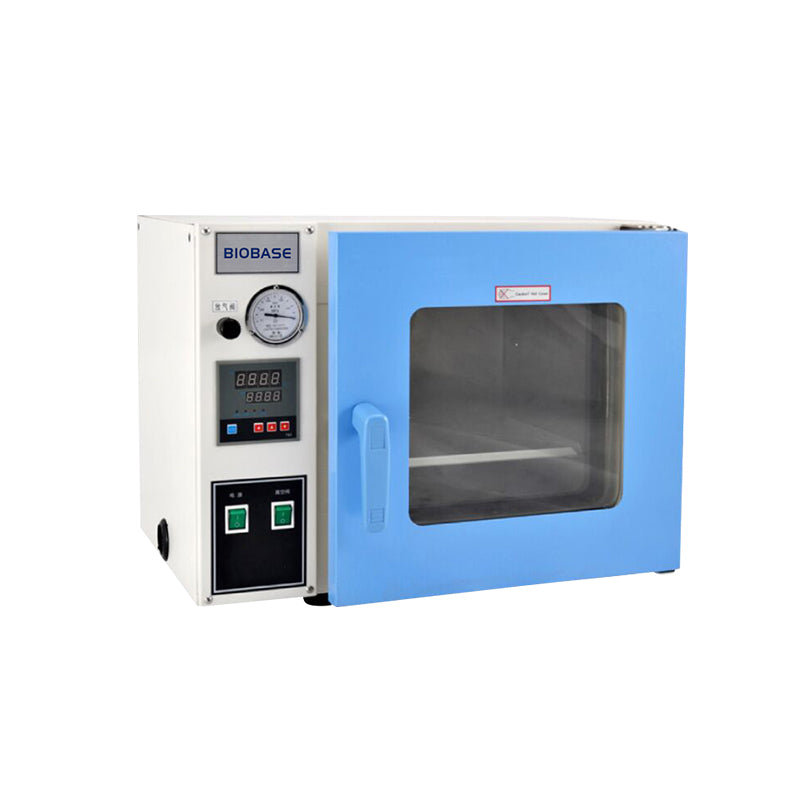

BIOBASE 30l 54l 91l 215l Lab Vacuum Drying Oven
Features:
* PID microprocessor temperature control with LED display.
* Polished stainless steel inner chamber.
* Vacuum degree is automatically controlled (For BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
* Silicon rubber seal ring ensures the high vacuum degree in the chamber.
* Tempered double-layer glass door ensures the operation safety.
* The vacuum is controlled by microprocessor controller with digital display.(For BOV-90VL/BOV-215VL)
* The working program has no circulation, no program control.(For BOV-90VL/BOV-215VL)
* The vacuum pump is standard accessory.(For BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)
* Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).(for BOV-90VL/BOV-215VL)
Models:
| Model |
BOV-30V |
BOV-50V |
BOV-90V |
BOV-215V |
BOV-90VL |
BOV-215VL |
| Capacity |
23L |
53L |
91L |
213L |
91L |
213L |
| Temp. Range |
50~200°C |
50~250°C |
50~200°C |
| Temp. Fluctuation |
±1°C |
| Vacuum Degree |
<133Pa |
| Vacuum Control |
Manual control |
Automatically;
Include one vacuum meter |
Automatically;
Microprocessor controller with
digital display |
| Shelves No. |
1 pc |
2pcs |
2 pcs |
3 pcs |
2 pcs |
3 pcs |
| Consumption |
500W |
1400W |
1600W |
2200W |
1600W |
2200W |
| Power Supply |
AC220V±10%, 50/60Hz(Standard); AC110V±10%, 60Hz(Optional) |
| Internal Size(W*D*H)mm |
296*300*270 |
416*370*346 |
450*450*450 |
556*600*640 |
450*450*450 |
556*600*640 |
External Size
(W*D*H)mm |
590*492*468 |
710*562*544 |
611*641*1398 |
721*794*1638 |
611*641*1398 |
721*794*1638 |
Package Size
(W*D*H)mm |
740*620*630 |
820*700*690 |
790*750*1570 |
900*850*1930 |
790*750*1570 |
900*850*1930 |
| Gross Weight(kg) |
50 |
106 |
155 |
195 |
155 |
Features:
1. PID microprocessor temperature control with LED display.
2. Polished stainless steel inner chamber.
3. Vacuum degree is automatically controlled (for BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
4. Silicon rubber seal ring ensures the high vacuum degree in the chamber.
5. Tempered double-layer glass door ensures the operation safety.
6. The vacuum is controlled by microprocessor controller with digital display.(for BOV-90VL/BOV-215VL)
7. The working program has no circulation, no program control. (for BOV-90VL/BOV-215VL)
8. The vacuum pump is standard accessory(for BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)
9. Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in). (for BOV-90VL/BOV-215VL)
