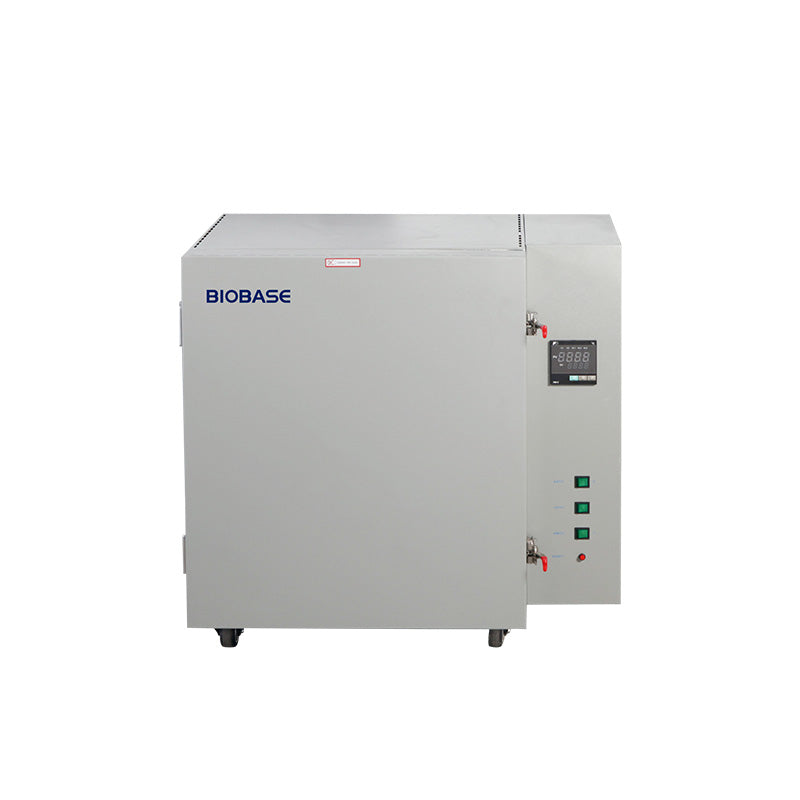

Benchtop High Temperature Hot Air Circulation Drying Oven
Models:
| Model |
BOV-H50 |
BOV-H100 |
BOV-H226 |
| Capacity |
50L |
100L |
226L |
| Display |
LED |
LCD |
| Temp. Range |
RT+20〜400°C |
50~500°C |
| Temp. Precision |
0.1°C |
| Temp. Fluctuation |
±0.5°C |
±1°C |
| Ambient Temp. |
5~40°C |
| Timing Range |
0~5999min |
0~9999min |
| Shelves No. |
2 pcs |
3 pcs |
| Consumption |
3250W |
4050W |
8000W |
| Power Supply |
380V,50HZ |
380V,50HZ |
| Internal Size(W*D*H)mm |
350*350*400 |
450*450*450 |
602*500*753 |
| External Size(W*D*H)mm |
890*700*920 |
990*790*990 |
1070*770*1122 |
| Packing Size (W*D*H)mm |
1010*820*1150 |
1100*920*1210 |
1220*890*1280 |
| Gross Weight.(kg) |
198 |
247 |
250 |
Features:
*Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
*PID microprocessor temperature control, precise and reliable temperature control.
*The inner box is designed with a circular arc structure, which is easy to clean.
*Optional printer or RS485 interface for software connection (For BOV-H50/100)
