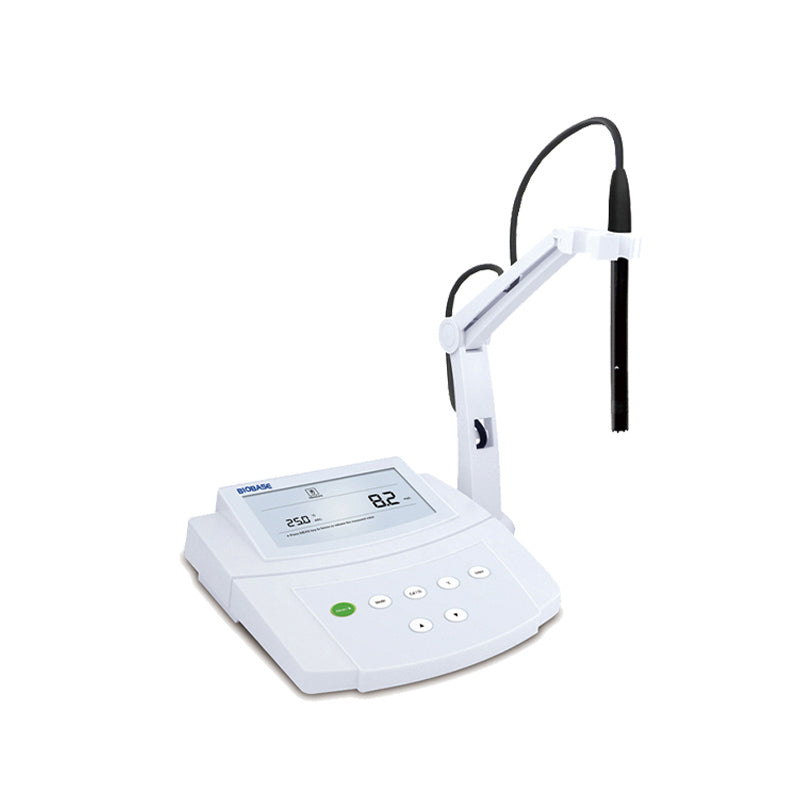

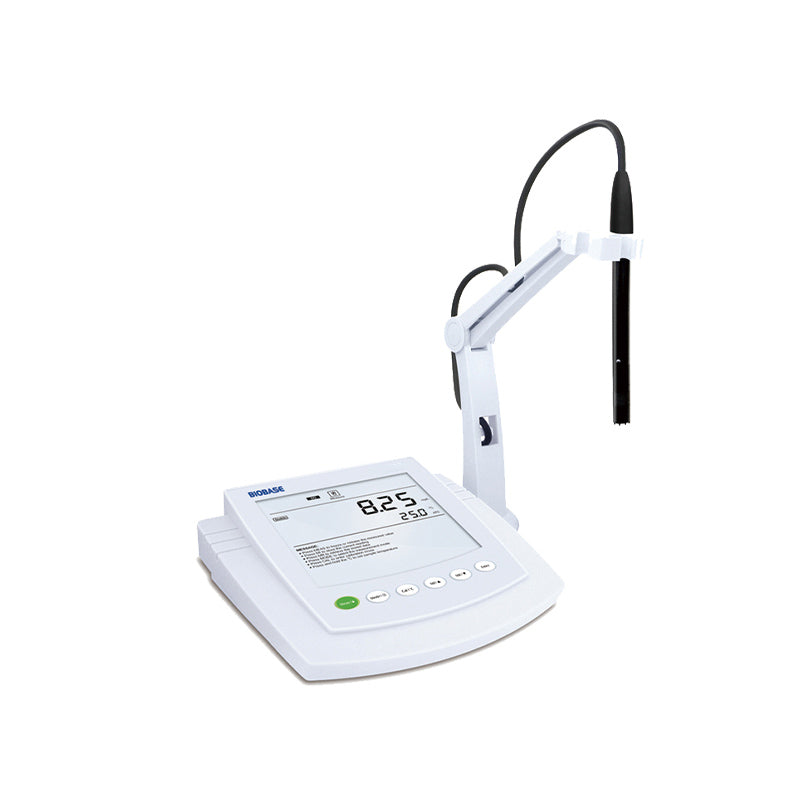

Benchtop Dissolved Oxygen Meter
Technical Parameters:
| Model |
PH-810 |
PH-980 |
| DO |
Range |
0.0~20.0mg/L or ppm |
| Accuracy |
±0.5mg/L |
±0.2mg/L |
| Resolution |
0.1mg/L |
0.01, 0.1mg/L, selectable |
| % saturation |
Range |
0.0-200.0% |
| Accuracy |
±2.0% |
| Resolution |
1% |
0.1,1%, selectable |
| Temperature |
Range |
0-60°C/32-140°F |
| Accuracy |
±1°C/±1.8°F |
±0.5°C/±0.9°F |
| Resolution |
0.1°C/0.1°F |
| Offset Calibration |
1 point, reading ±10°C |
| Other Specifications |
Dissolved Oxygen Calibration |
1 or 2 points |
| Temperature Compensation |
0~40°C, automatic |
0〜50°C, automatic |
| Barometric Pressure Correction |
60.0~112.5kPa/450〜850mmHg, manual |
| Salinity Correction |
0.0~35.0g/L, manual |
0.0~50.0g/L, manual |
| Stability Criteria |
/ |
Low or high |
| Calibration Due Alarm |
/ |
1 to 31 days or off |
| Hold Function |
Manual or auto-endpoint |
| Memory |
/ |
500 data sets |
| Communication Interface |
/ |
USB |
| Connector |
6-pin nimi-DIN |
| Display |
Custom LCD (120*60mm) |
Custom LCD (125*100mm) |
| Power Requirements |
DC9V power adapter |
DC5V power adapter |
| Dimensions(mm) |
210*205*75mm |
210*188*60mm |
| Weight(kg) |
1.5kg |
| Package Size(W*D*H)mm |
310*240*180mm |
| Gross weight(kg) |
1.7kg |
