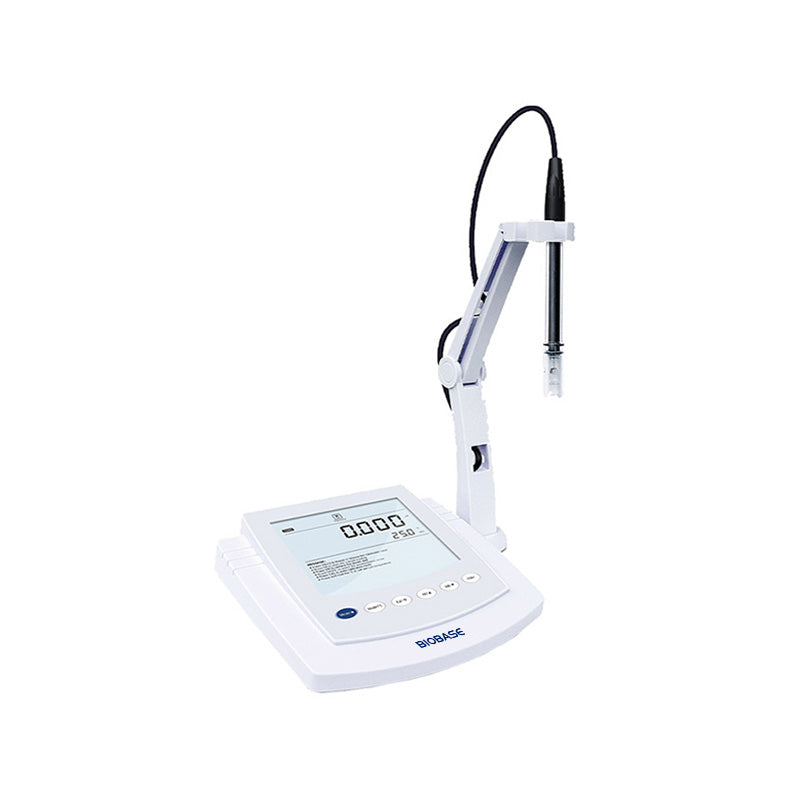

Benchtop Conductivity/TDS/Salinity/Resistivity Meter
Technical Parameters:
| Model |
PH-950 |
| Conductivity |
Range |
Standard |
CON-1: 2μs/cm~20000μs/cm |
| Optional |
CON-0.01: 0.01 μs/cm~0.1 μs/cm； CON-0.1: 0.1 μs/cm~2μs/cm； CON-10： 20000μs/cm~200ms/cm |
| Accuracy |
±0.5% F.S. |
| Resolution |
0.001,0.01,0.1,1 |
| Calibration Points |
1 to 5 points |
| Calibration Solutions |
10pS/cm, 84μS/cm, 1413pS/cm, 12.88mS/cm, 111.8mS/cm |
| TDS |
Range |
0~10.00,100.0, 1000ppm, 10.00, 200.0ppt |
| Accuracy |
±1% F.S. |
| Resolution |
0.01,0.1,1 |
| Salinity |
TDS Factor |
0.1-1.0 (default 0.5) |
| Range |
0.00~42.00psu,0.00~80.00ppt |
| Accuracy |
±1% F.S. |
| Resistivity |
Resolution |
0.01 |
| Range |
0.00 〜20.00MQ |
| Accuracy |
±1% F.S. |
| Temperature |
Resolution |
0.01 |
| Range |
0~105°C/32~221°F |
| Accuracy |
±0.5°C/±0.9°F |
| Other
Specifications
|
Resolution |
0.1°C/0.1°F |
| Offset Calibration |
1 point, reading ±10°C |
| Temperature Compensation |
0~100°C, manual or automatic |
| Temperature Coefficient |
Linear (0.0~10.0%/°C), non-linear, pure water |
| Reference Temperature |
20/25°C |
| Cell Constant |
K=0.1, 1, 10 |
| Stability Criteria |
Low or high |
| Calibration Due Alarm |
1 to 31 days or off |
| Calibration Factor Display |
Yes |
| Hold Function |
Manual or auto-endpoint |
| Memory |
500 data sets |
| Communication Interface |
USB |
| Connector |
6-pin nimi-DIN, 3.5mm jack socket |
| Display |
Custom LCD (125*100mm) |
| Power Requirements |
DC5V power adapter |
| Dimensions(mm) |
210*188*60mm |
| Weight(kg) |
1.5kg |
| Package Size(W*D*H)mm |
310*240*180mm |
| Gross weight(kg) |
1-7kg |
