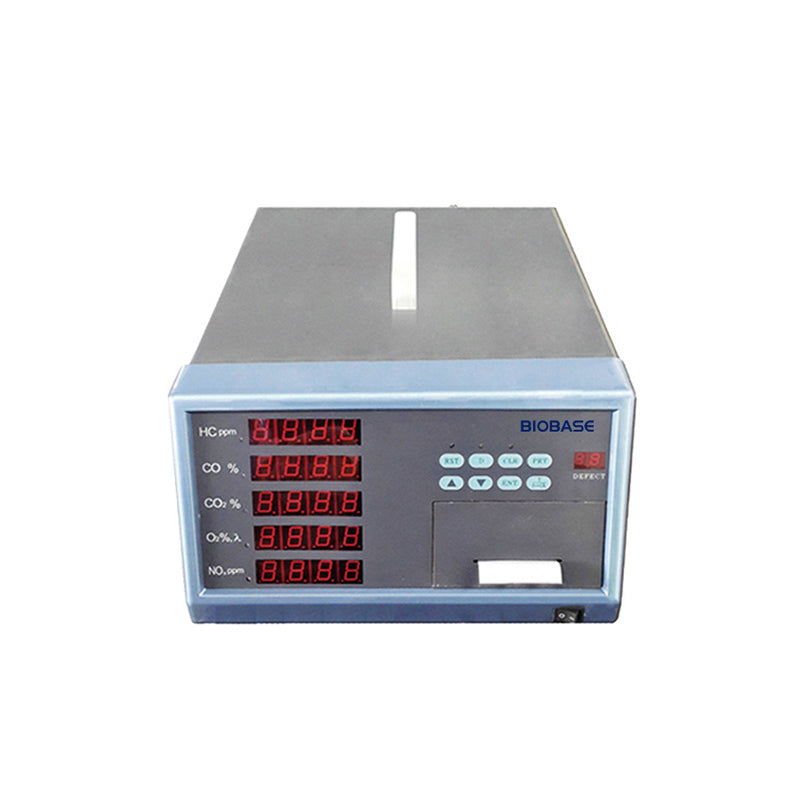

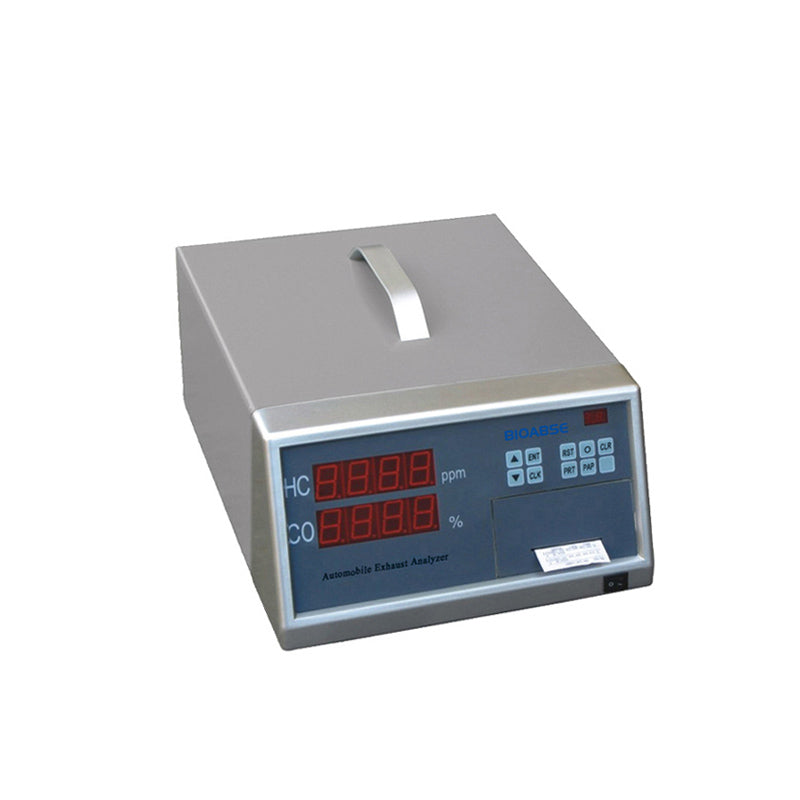

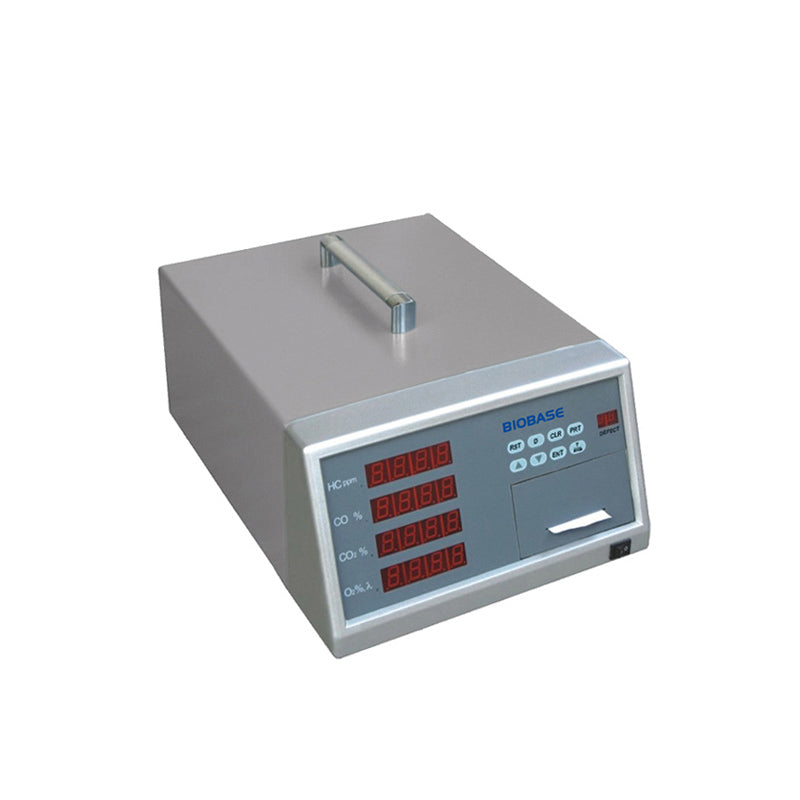

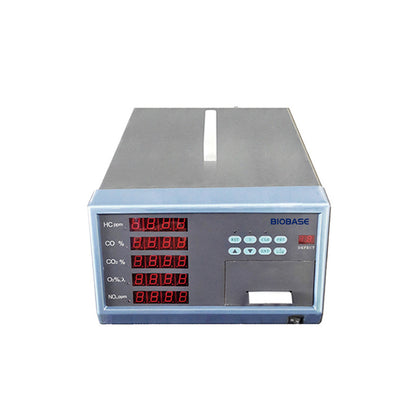

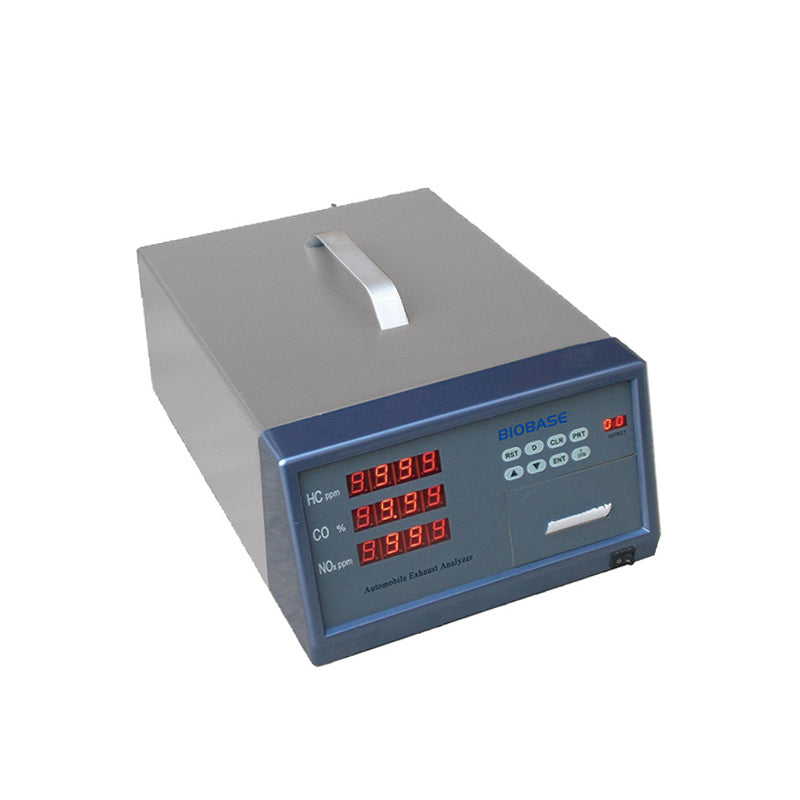

Automobile Exhaust Analyzer
Features:
* With built-in printer
* With a high-brightness digital display
* Automatic zero, linear automatic data processing, auto-alarm when the gas line blocking
Technical Parameters:
| Model |
BK-EA201 |
BK-EA301 |
BK-EA401 |
BK-EA501 |
| Measuring Range |
HC: 0-10000*10'6ppmjvol
CO: 0~10*10 2(%)vol
|
HC: 0-10000*10'6ppmjvol
CO: 0~10*10 2(%)vol
NOx： 0-5000*1 0'6ppmjvol
|
HC: 0-10000*10'6(ppm)vol
CO: 0~10*10 2(%)vol CO2： 0~20*10-2(%)vol
O2： 0-25*10 2(%)vol
A: 0.50-3.00
C0：0-10*10-2(%)vol
|
HC: 0-10000*10'6(ppm)vol
CO: 0~10*10-2(%)vol
CO2： 0-20*10 2(%)vol
O2：0-25*10 2(%)vol
NOx： 0-5000*10'6ppmjvol 入:0.50~3.00 COCOcor：0~10*10-2(%)VOl
|
| Indicating Error |
HC±12*10'6(ppm)vol
C0±0.06*10 2(%)vol
|
HC±12*10'6(ppm)vol
C0±0.06*10-2(%)vol
NOx±25*10-6 (ppm)vol
|
HC±12*106(ppm)vol
C0±0.06*10-2(%)vol
C02±0.5*10-2(%)vol
02±0.1*10'2(%)voI
|
HC±12*10w(ppm)vol
C0±0.06*10-2(%)vol
C02±0.5*10'2(%)vol
02±0.1*10-2(%)voI
NOx±25*10'6(ppm)vol
|
| Stability |
Moment drift≤±3% |
| Repeatability |
≤±2% |
| Response Time |
95% response is not more than 10 seconds |
| Preheating Time |
8min (preheating 3min emergency detection) |
| Power Supply |
AC110-240V±10%, 50/60HZ； Optional DV12V |
| Package Size(W*D*H) |
620*435*295mm |
| Gross Weight |
12.5kg |
