Sturdy’s advanced tabletop autoclaves for solid, wrapped, tubal and liquid (optional) sterilization. These autoclaves use Microprocessor design, providing smart logic control for precision temperature monitoring and a full range of settings for diagnostics, drying and pre-programmed sterilization presets. The most main feature is a powerful vacuum pump for thorough inside-out sterilization of tubal instruments.

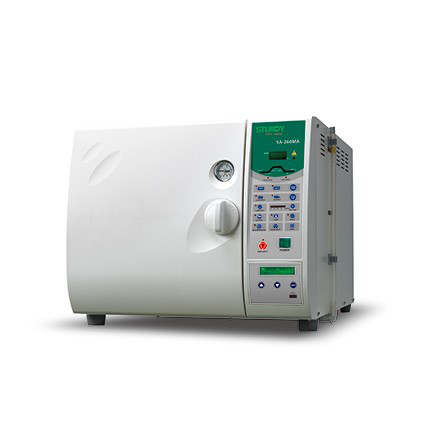

AUTOCLAVE SA-260MA – 24 LITRE
- Microprocessor control system: Fully automatic control from Pre-vacuum to dry and 24 programs for your selection
- Pre-heating by dry heater ensuring chamber temperature balance and perfect drying function
- Special LIQUID sterilization program: it is the special function for laboratory and scientific use
- Special PRION sterilization program: it is the special program for PRION sterilization
- Special BOWIE-DICK test program: the users can identify the perfect sterilization function with this program
- An “ERROR” indicator, to help the users and engineers to find the function problem automatically
SPECIFICATIONS:
| MODEL : |
SA-260MA (B-CLASS) |
| Overall Dimensions |
655mm x 533mm x 442mm |
| Chamber Dimension |
260mm x 450mm |
| Capacity |
24 l |
| Temperature / Pressure |
Unwrapped / Wrapped : 121 – 134°C ; 2.2kg per cm² |
| Liquid : 121°C ; 1.2kg per cm²
|
| Control System |
Pressure control |
| Power Consumption |
220 V: 1.8kW ; 8.3Amp / 240 V: 2.1kW ; 8.8Amp |
| Auto-fill Water System |
Yes |
| Double Water Level Check Device |
Yes : One for water tank ; one for chamber water level check |
| Auto Drying |
Yes : 0, 15, 30, 35 or 40 minutes |
| Pre-Vacuum |
Yes |
| Dry-Vacuum |
Yes |
| Indicators / Temperature Display |
Yes / LED |
| Sterilization Temp / Time |
Wrapped : 121°C – 30 min; 134°C – 15 min |
| Unwrapped: 121°C – 15 min; 134°C – 4 min |
| Standard Accessories |
Sterilization box x 1 ; Tray x 1 |
| Optional Accessories |
Tray frame x 1 ; Tray holder x 1 ; Tray x 3 ; Spring x 2 |
| Safety Devices |
ü Temperature control switch |
| ü Pressure door auto-lock device |
| ü Emergency key – cuts power supply & exhausts chamber pressure |
| ü Chamber pressure gauge + pressure & steam pressure safety valve |
| ü Door close indication |
| ü Low water alarm and indication |
| ü Over-heat protector |
| ü Safety valve |
| ü Electronic circuit safety system |
| ü Low water indicator & shutout device |
| ü Sterilization completion indicator |
| Quality Standard |
CE-MDD |
