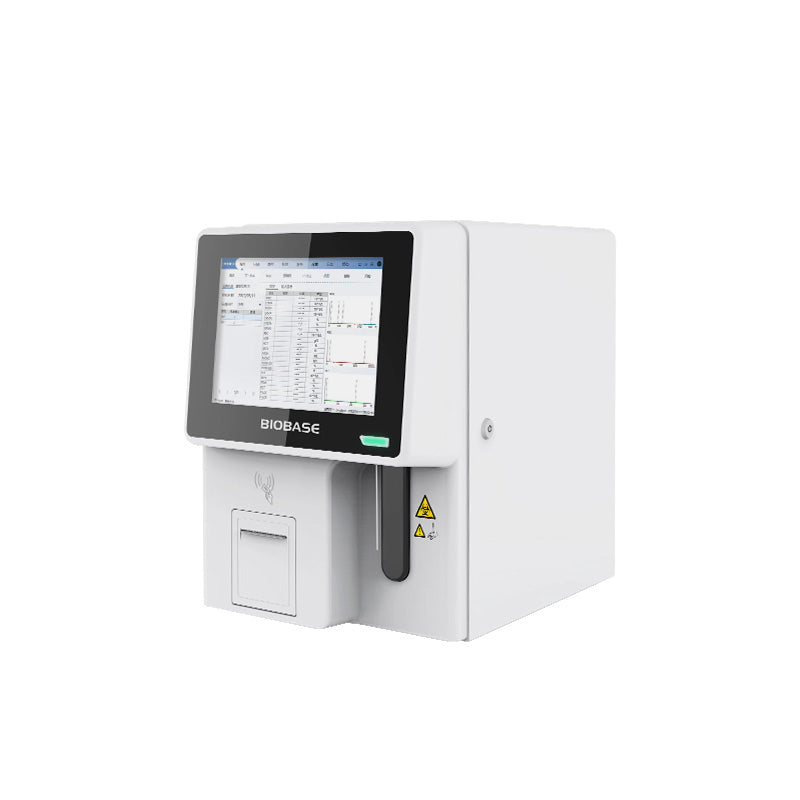

Auto Hematology Analyzer BK-3200
Features：
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen
2. Fewer samples are required for testing: whole blood≤10ul, pre-diluted≤20ul
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. It can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available
11. Counting Mode: Venous, capilary, prediluted
12. Support LIS system
Technical Parameter:
| Model |
BK-3200 |
| Throughput |
60 samples/hour |
| Principle |
Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB |
| Channels |
2 |
| Parameters |
21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV,PDW，PCT, P-LCR, P-LCC) |
| Histograms |
3 histograms (including WBC, RBC, PLT histograms) |
| Sample Volume |
Whole blood: 12μl, Prediluted: 20μl |
| Calibration |
Manual, auto calibration |
| Counting Modes |
Venous, capilary, prediluted |
| Printing Model |
Auto print, manual print |
| LIS |
Support Bi-directional LIS |
| Language |
Chinese, English, Spanish, French, Russian, Ukrainian |
| Reagent |
Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml |
| Data Input |
9.7-inch touch screen, mouse, keyboard (optional) |
| Output |
Internal printer, support external printer |
| Printer paper |
57*30mm |
| Interface |
4 USB ports, network port，RS232 serial port. |
| Storage |
100,000 results with histogram |
| Unclog |
High voltage burn, reverse high-pressure flush |
| Work Temperature |
15-30°C |
| Power Supply |
100~240 AC, 50/60Hz, 150VA |
| Relative Humidity |
30﹪～85﹪ |
| Atmospheric Pressure |
70.0kPa-110.0kPa |
| Carry-over rate |
Parameter |
WBC |
RBC |
HGB |
PLT |
| CV |
≤ 1.5% |
≤ 1% |
≤ 1% |
≤ 3% |
| Background |
Parameter |
WBC |
RBC |
HGB |
HCT |
PLT |
| Background |
≤ 0.3×109/L |
≤ 0.03×1012/L |
≤ 1 g/L |
≤ 0.5% |
≤ 10×109/L |
| Linearity |
Parameter |
Measurement range |
CV |
| WBC |
(0.5~10.00×109)/L
(10.10~99.9×109)/L |
(±0.5×109)/L
±5% |
| RBC |
(0.05~1.00×1012)/L (1.01~9.99×1012)/L |
(±0.05×1012)/L
±5% |
| HGB |
(2~70g)/L
(71~300.0g)/L |
(±2.0g)/L
±2% |
| PLT |
(10~100×109)/L
(101~999×109)/L |
(±10.0×109)/L
±8% |
| Precision |
Parameter |
Whole blood (CV) |
Pre-diluted（CV） |
Measurement range |
| WBC |
≤ 2.0% |
≤ 4.0% |
(4.0-15.0×109)/L |
| RBC |
≤ 1.6% |
≤ 3.0% |
(3.5-6.0×1012)/L |
| HGB |
≤ 1.6% |
≤ 3.0% |
(110.0-180.0g)/L |
| MCV |
≤1.0% |
≤2.0% |
(70.0-120.0)fL |
| PLT |
≤ 4.0% |
≤8.0% |
(150.0-500.0×109)/L |
| External Size(W*D*H) |
295*467*418mm |
| Packed Size(W*D*H) |
Instrument: 404*564*616mm; Reagent: 480*480*480mm |
| Net weight |
19 KG |
| Gross weight |
Instrument:31KG; Reagent::25Kg |
Features
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen
2. Fewer samples are required for testing: whole blood≤12μl, pre-diluted≤20μl
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. It can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available
11. Counting Mode: Venous, capilary, prediluted
12. Support LIS system
