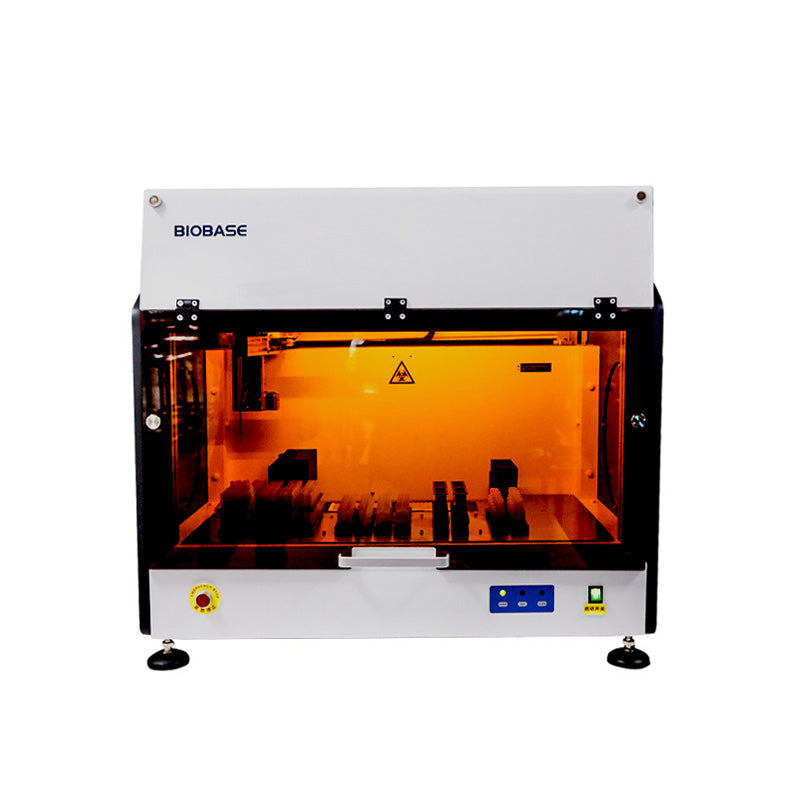

Auto ELISA Processor (BIOBASE1000)
Auto ELISA Processor (BIOBASE1000)
Medical Grade
Professional environments.
Trusted Brands
Recognized suppliers.
Expert Support
Assistance available.
Reliable Delivery
Dependable shipping.
Product Description
Product Description
Features:
1. 1 robotic arm, 1 pipetting probe(10~1000μl).
2. 2 unit 96 well microplates(independent incubating).
3. 1 unit reader& washer (auto reading and washing).
Models:
| Model | BIOBASE 1000 | |
| Sample Unit | Sample Racks |
Standard 192 sample position (expandable, up to 384) |
| Pipetting | 10~1000μl | |
| Dispensing System | 1 aspirating-dispensing probe with X-Y-Z movement; | |
| Reagent Unit | Reagent Racks | Universal reagent position: standard 6 universal reagent positions (expandable, up to 32); Original reagent bottle: Standard 20 reagent bottles position (expandable, up to 80) |
| Pipetting Range | 10~1000μl,1ul stepping | |
| Pipetting precision | (100μl) CV≤0.5% | |
| DispensingTime | 5 minutesto whole96well microplates | |
| Incubation Unit | Incubation | 2 independentIncubators |
| Temperature Range | RT to 45 °C | |
| Temperature Accuracy | ±0.5°C | |
| Washing Unit | WashingProbes | Two line 8-nozzle manifolds |
| Wash Containers | 2 wash buffers 2L, 1 distilled water, 1 waste water | |
| Washing Residual | <2μl | |
| Reading Unit | ReadingChannels | 8 independent photometric channels,mono and dichromatic reading |
| Absorbance | 0.0 ~3.0 OD | |
| Spectral Range | 400-700nm | |
| Optical Filters | 2standardfilters (450,630nm);
2 more on request (405nm/450nm/492nm/630nm) |
|
| Data Management | Software | Windows 7 |
| LIS System | Bi-direction,support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 400W |
| Temperature | 10～30℃ | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 933*685*860mm |
| Net Weight | 130kg | |
| Package Size (W*D*H) | 1085*840*1318mm | |
| Gross Weight | 180kg | |
The auto elisa processor is an analytical instrument used in the field of pharmacy, hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.
