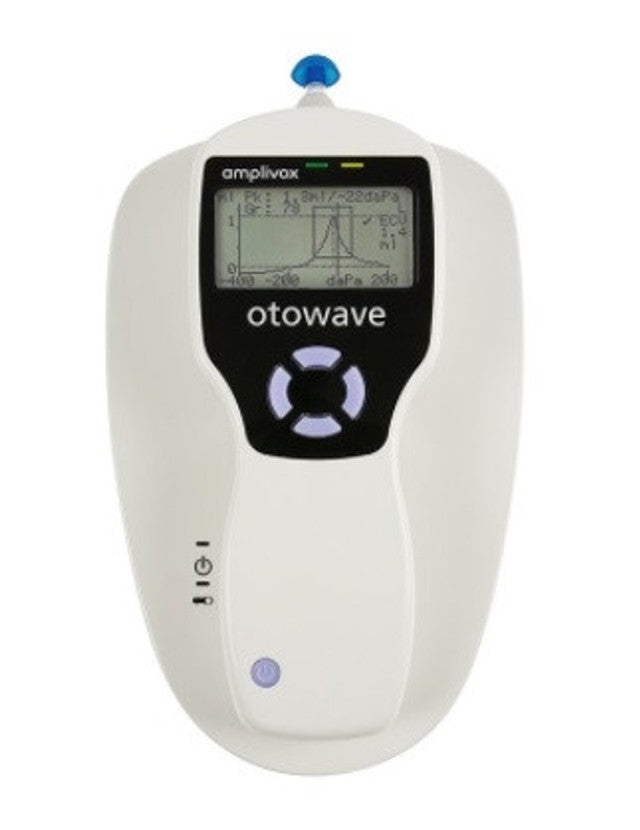

Amplivox Otowave 102-C Tympanometer w/ Charging/Data Transfer Cradle

The Otowave 102-C builds on the foundations of the successful Otowave 102 by adding a charging and data transfer cradle for improved data handling within a busy clinical setting and successfully measures tympanometry and acoustic reflexes with live tymp display.

Features and Benefits

• Portable, handheld design
• 226 Hz probe tone
• Live display
• Fully customizable test protocol
• Four ipsilateral reflex frequencies
• Multiple level and single level reflex tests
• Auto pass/refer evaluation
• Pressure range -400 - + 200daPa
• Internal memory, wireless printing to optional thermal printer and PC connectivity
• Results are displayed for review on a large high-resolution graphics display.
• Available software's to download for free; also included on a USB stick
  • AmpliSuite 1.2
    • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
    • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
    • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
    • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
  • ampliSuite NOAH
    • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
    • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
  • ampliSuite PRO
    • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.

Materials Included

• Otowave 102-C Tympanometer
• (4) Test Cavities
• (30) Disposable Ear-Tips
• (1) Charging Cradle
• (1) Carry Case
• (1) AC Adapter
• (1) Portable Printer (Optional)
• (2) Paper Rolls For (Optional Printer Paper)
• (1) USB Stick with AmpliSuite 1.2, AmpliSuite NOAH & AmpliSuite PRO Software & User Manual
• (1) Noah impedance module

Technical Specifications

• Physical
  • Power (battery pack): NiMH rechargeable battery
  • Weight: 380g handset / 650g with cradle
  • Dimensions:
    • Length: 9"
    • Width: 4.5"
    • Height: 2.7"
• Tympanometry Measurements
  • Probe tone level: 226Hz ±2%, 85dB SPL ±2 dB
  • Pressure range:
    • +200daPa to -400daPa ±10daPa or
    • ±10% (which ever is greater)
  • Direction of sweep: Positive to negative
  • Volumetric range: 0.2ml to 5ml ±0.1ml or ±5% (which ever is greater)
  • Analysis performed: Compliance peak level, compliance peak pressure level, gradient and equivalent ear canal volume
• Reflex Measurements
  • Reflex Frequencies: 500Hz, 1kHz, 2kHz, 4kHz ±2% user-selectable
  • Reflex dB range:85 to 100 dBHL ±3dB (5 or 10dB steps); threshold measurement or single level
  • Measurement Range: 0.01ml to 0.5ml ±0.01m
  • Analysis performed: Reflex maximum amplitude and pass/fail at each test leve
• Data Management
  • Internal database: database: 32 patient records
  • Optional printer: MPT-II thermal printer (USB)
  • Languages: English, German, Italian, Spanish, French, Portuguese

Warranty Information

• 3-Year Warranty
