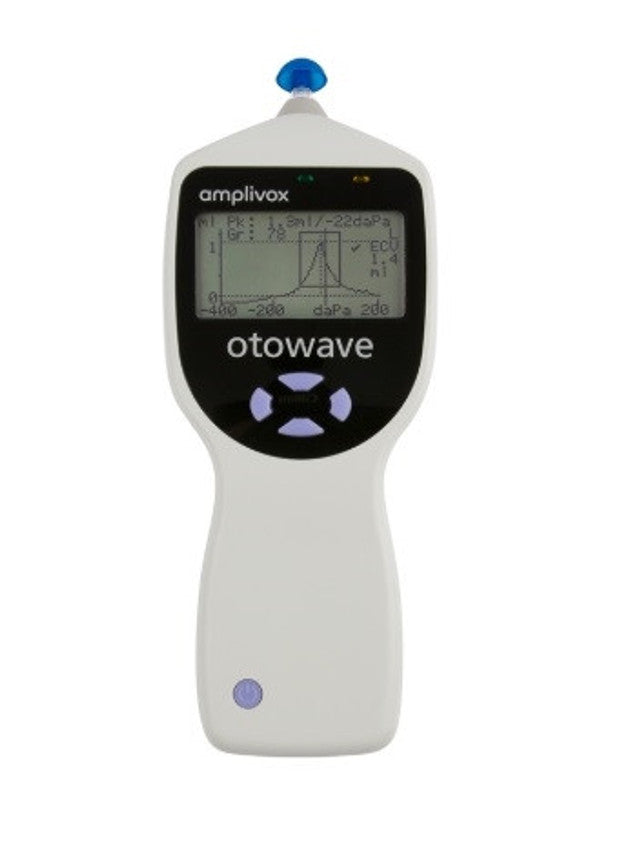

Amplivox Otowave 102-4 Tympanometer (4 Channel Reflex)

The Amplivox Otowave is shaped for success in accurate middle ear measurements.

Features and Benefits

• Portable, handheld design
• Auto pass/refer evaluation
• The compliance peak, compliance peak pressure, gradient, ear canal volume and an ipsi lateral reflex test will be measured within seconds
• Enhanced mode reflex test, comes in 4 channel frequency (500, 1KHz, 2KHz and 4KHz)
• Results are displayed for review on a large high-resolution graphics display.
• Internal memory, wireless printing to optional thermal printer and PC connectivity
• Available software's to download for free; also included on a USB stick
  • AmpliSuite 1.2
    • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
    • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
    • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
    • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
  • ampliSuite NOAH
    • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
    • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
  • ampliSuite PRO
    • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.

Materials Included

• Otowave 102-1 Tympanometer
• (4) Test Cavities
• (30) Disposable Ear-Tips
• (4) AA Batteries
• (1) Carry Case
• (1) Portable Printer (Optional)
• (2) Paper Rolls For (Optional Printer Paper)
• (1) USB Stick with AmpliSuite 1.2, AmpliSuite NOAH & AmpliSuite PRO Software & User Manual
• (1) Noah impedance module

Technical Specifications

• Tympanometry Measurements
  • Probe Tone: 226Hz +/-0.1%, 85dB +/-2dB
  • Pressure Range: +200daPa to -400daPa +/-10daPa
  • Direction of Sweep: Positive to negative
  • Volumetric Range: 0.2 to 5ml +/- 0.01ml or 10% over range whichever is greater
  • Analysis Performed: Compliance peak level, compliance peak pressure level, gradient and equivalent ear canal volume
• Reflex Measurements
  • Otowave 102-4: 500Hz, 1KHz, 2KHz & 4KHz +/-0.1%
  • Reflex dB range: 85 to 100 dBHL (programmable in 5 or 10 dB steps)
  • Reflex Measurement Range: 0.01ml to 0.5ml +/-0.01ml
  • Analysis Performed: Reflex maximum amplitude and pass/fail at each test level
• Data Management
  • Internal Database
    • 30 patient records
    • Patient record identification
    • Data transfer to designated printer or PC application
  • Printing (Optional)
    • Designated printer: high speed portable thermal printer
    • Data transfer: Infra-red IrDA 9600 Baud Printing may also be completed via a PC with the relevant applications
• Physical Data
  • Power (Battery): 4x Alkaline AA or 4x NiMH (>=2.3Ah) rechargeable
  • Dimensions:
    • Length: 8.25"
    • Width: 3.1"
    • Height: 1.5"
  • Weight: .08 lbs (including batteries)
• Standards
  • Safety: IEC 60601-1
  • EMC: IEC 60601-1-2
  • Impedance: IEC 60645-5-5 Type 2 Tympanometer ANSI 3.39
  • CE Mark: Complies to EU Medical Device Directive

Warranty Information

• 3-Year Warranty
