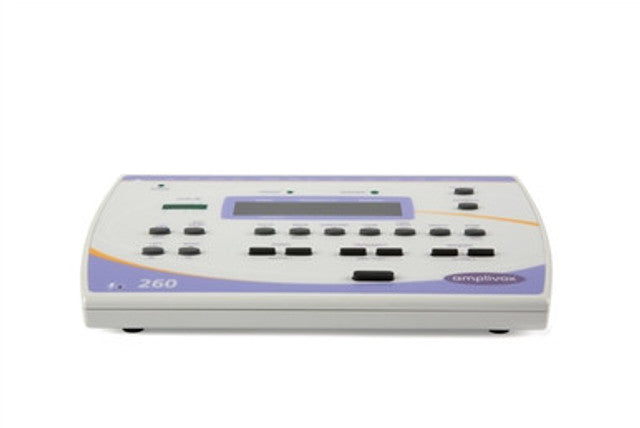

Amplivox 260 Air, Bone and Speech Audiometer

The 260 Audiometer features everything you need to identify different kind of hearing loss and is regularly used to fit hearing aids all around the world. The device includes air, bone and speech audiometry in a compact and lightweight design.

Features and Benefits

• Frequency range: 125 - 8000Hz
• Attenuation range: -10 - 120dBHL
• Air and bone conduction, ULL/UCL
• Speech testing (live and recorded)
• Tone selection: Pure, pulsed, warble, continuous
• Narrowband masking
• Special tests: ABLB, Stenger
• Portable and lightweight design
• Integrated talk forward function
• Threshold retention function (during Test)
• Results can be saved in memory, printed with the optional printer and/or transferred to a PC with the AmpliSuite 1.2 software
• Optional inserts are available; Inserts are a small tube with a foam plug and the sound goes through the tube. Inserts will be calibrated to the unit.
• Available software's to download for free; also included on a USB stick
  • AmpliSuite 1.2
    • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
    • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
    • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
    • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
  • ampliSuite NOAH
    • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
    • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
  • ampliSuite PRO
    • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.

Materials Included

• Amplivox 260 audiometer
• (1) Audiometric headset
• (1) Bone conductor headset
• (1) Patient response switch
• (50) Audiogram cards
• (1) Mains Adapter
• (1) Integrated talk over function
• (1) Carrying Case
• (1) USB Stick with AmpliSuite 1.2, AmpliSuite NOAH & AmpliSuite PRO Software & User Manual

Technical Specifications

• Output/Input Data
  • Outputs: Left AC, Right AC, Bone (L&R), insert masking and freefield
    • Frequency range (Hz):
      • AC: 125 - 8kHz
      • BC: 250Hz - 8kHz
  • Frequency Accuracy: <1%
  • Distortion: <2%
  • Output Level Range (AC): -10dBHL to 120dBHL (max)
  • Output Level Range (BC): -10dBHL to 70dBHL (max)
  • Output Level Range (FF): Up to 90dB
  • Insert masking output: 90dBHL max (250-4kHz)
  • Output Level Accuracy: Within 3dB
  • Output Level Step Size: 2.5dB or 5dB
  • Tone Present: Pure Tone, Pulsed, Warble or Continuous
  • Masking: Narrowband and broadband
  • Stenger: Pure tone Stenger test
  • ABLB: Loudness balance test (Fowler)
  • Communication: Integral talk over and talk back facility
  • Recorded speech: Tape or CD input
  • Live Speech: 2 x microphone input
  • Level indicator: Monitors live and recorded speech
  • NOAH Interface: Transfer of AC, BC, Speech and ULL test results
• Physical Data
  • Display: 2 lines of 24 characters (backlit)
  • Power (battery): 4 x 1.5V “C” type batteries
  • Power (mains): 100-240V ac 50-60Hz
  • Dimensions:
    • Length: 10.5"
    • Width: 7"
    • Height: 2.75"
  • Weight: 1.8 lbs
• Standards
  • Safety: IEC 60601-1
  • EMC: IEC 60601-1-2
  • Audiometric: IEC 60645-1, IEC 60645-2 ANSI S3.6
  • CE Mark: Complies to EU Medical Device Directive

Warranty Information

• 3-Year Warranty
