Air and Bone Audiometer - Amplifox 240

Name: Air and Bone Audiometer - Amplifox 240
Brand: I-Surgical
Availability: InStock

✓

Medical Grade

Professional environments.

✓

Trusted Brands

Recognized suppliers.

✓

Expert Support

Assistance available.

✓

Reliable Delivery

Dependable shipping.

Product Description

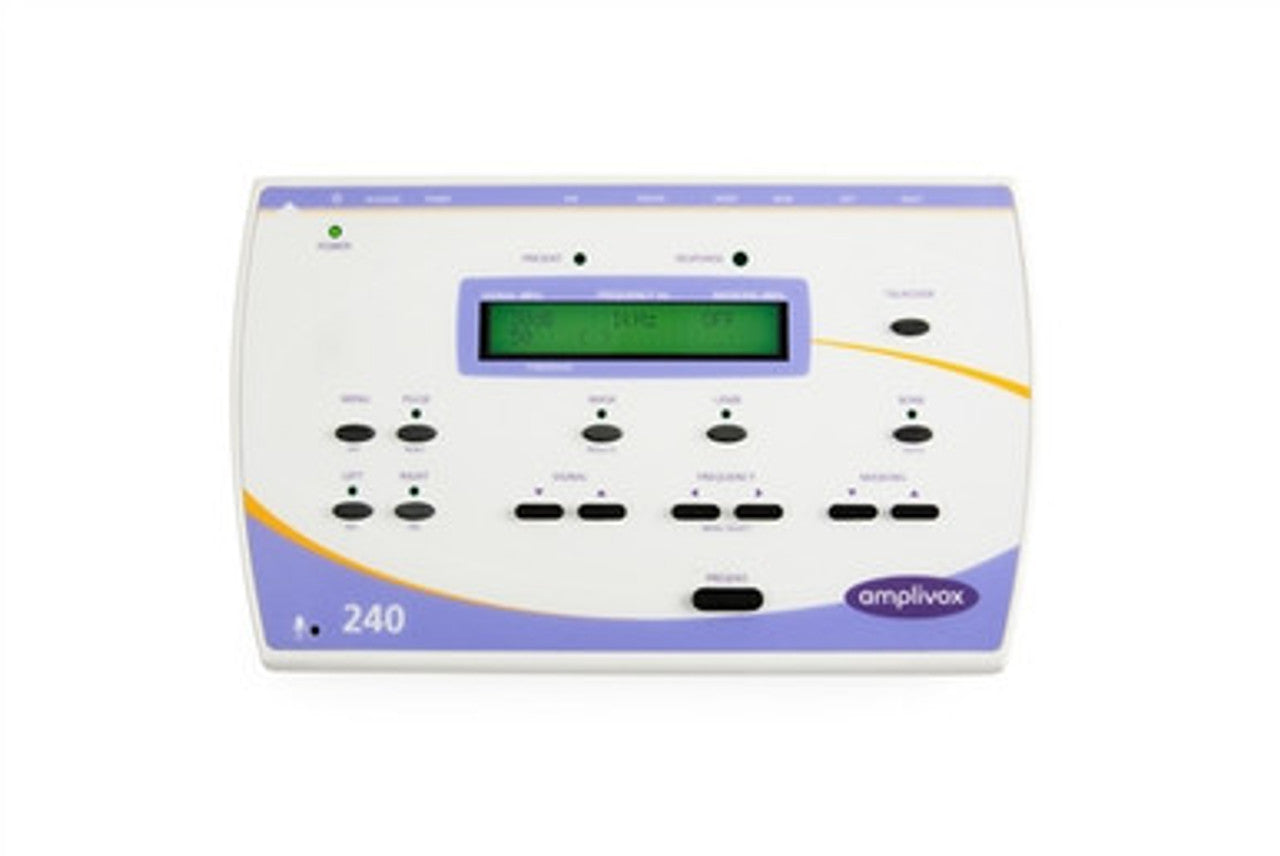

Model 240 Diagnostic Audiometer

The Model 240 diagnostic audiometer is the ideal instrument for mobile use or situations where a small footprint is required. This compact and lightweight audiometer offers both manual and automatic air conduction, bone conduction testing, and masking, efficiently diagnosing various types of hearing loss.

Features and Benefits

Frequency Range: 125 - 8000 Hz
Attenuation Range: -10 - 100 dB HL
Tone Selection: Pure, pulsed, warble
Masking: Narrowband masking
Design: Portable and lightweight
Integrated Talk Forward Function: Facilitates communication during tests
Threshold Retention Function: Retains threshold during testing
Power Options: Optional battery power available
Printing Results: Compatible with optional Sanibel Infra-Red printer and printer cable
Included Software: Available for free download; also included on a USB stick

AmpliSuite Software

AmpliSuite 1.2

The AmpliSuite 1.2 is a perfect companion for your workflow and can be used without a database. It’s an ideal free solution for those using paper or other databases that require PDF session uploads. Key features include:

Audiometry Module: Offers both tone and speech options, which can be uploaded directly from the audiometer to the suite.
Immittance Module: Includes tympanometry and acoustic reflex options with large graphs for extensive review.
Counseling Tools: Features adjustable PTA calculation, SRT, customizable normative boxes, and pass/refer evaluations.

AmpliSuite NOAH

The AmpliSuite NOAH seamlessly connects with NOAH 4 for both modules. Key features include:

Database Integration: Enables baseline comparisons with results displayed on one graph in multiple colors for easy analysis.

AmpliSuite PRO

Designed for user-friendliness, the AmpliSuite PRO offers unlimited storage for measurement data and client information. Key features include:

One-Click Features: Provides automatic backup and advanced login options for enhanced security and convenience.

Materials Included

Amplivox 240 Air and Bone Audiometer
(1) Audiometric headset
(1) Bone conductor headset
(1) Patient response switch
(50) Audiogram cards
(1) Mains adapter
(1) Integrated talk-over function
(1) Custom-designed carrying case
(1) USB stick with AmpliSuite 1.2, AmpliSuite NOAH, AmpliSuite PRO software, and user manual
(1) NOAH audiometry module

Technical Specifications

Output/Input Data

Outputs: Left AC, Right AC, Bone (L&R) insert masking
Frequency Range: AC: 125 - 8 kHz, BC: 250 Hz - 8 kHz
Frequency Accuracy: <1%
Distortion: <2%
Output Level Range (AC): -10 dB HL to 120 dB HL (max)
Output Level Range (BC): -10 dB HL to 70 dB HL (max)
Insert Masking Output: 90 dB HL max (250-4 kHz)
Output Level Accuracy: Within 3 dB
Output Level Step Size: 5 dB
Output Transducer Options: Standard audiometric headset (AC) and/or optional insert earphones
Tone Present: Pure tone, pulsed, or warble
AC Test: Manual or automatic mode
Masking: Narrowband
Communication: Integral talk forward facility
NOAH Interface: Transfer of AC, BC, and speech test results
