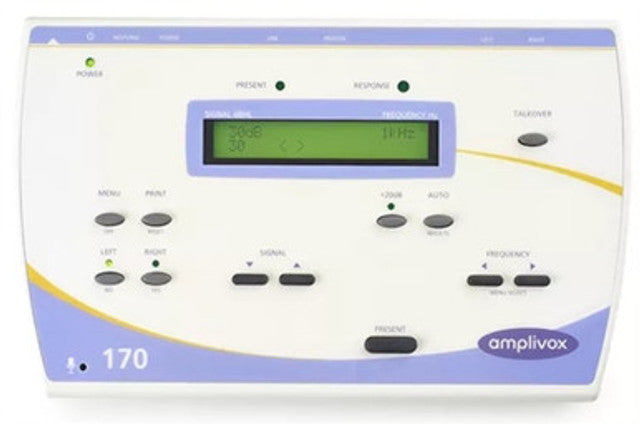

Amplivox 170 Portable Manual & Automatic Screening Audiometer

Amplivox 170 Portable Manual & Automatic Screening Audiometer

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

The Amplivox 170 is a stylish, cost-effective screening audiometer offering both automatic and manual audiometry.

Features and Benefits

  • Frequency range: 125 - 8000Hz
  • Attenuation range: -10 - 100dBHL
  • Pure tone audiometry
  • Manual pulse tone option
  • Portable and lightweight design
  • Integrated talk forward function
  • Threshold retention function (during test)
  • Connectivity to many electronic medical record (EMR) systems
  • Upon test completion, results can be printed with the optional Sanibel Infra-red External Printer & Cable, saved in memory for future use, recorded manually or transferred to a PC installed with Amplivox AmpliSuite 1.2 software for electronic storage and statistical analysis of audiogram results.
  • Available software's to download for free; also included on a USB stick
    • AmpliSuite 1.2
      • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
      • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
      • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
      • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
    • ampliSuite NOAH
      • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
      • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
    • ampliSuite PRO
      • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.
  • Optional audiocups headset available

Materials Included

  • Amp 170 Automatic & Manual Audiometer
  • (1) Audiometric Headset
  • (1) Patient Response Switch
  • (50) Audiogram Cards
  • (1) Power Adapter
  • (1) CD Software
  • (1) USB Stick with AmpliSuite 1.2 PC Software & User Manual
  • (1) Noah audiometry module
  • (1) Audiocups headset (Optional)

Technical Specifications

  • Output/Input Data
    • Outputs: Left AC, Right AC
    • Frequency range (Hz): 125, 250, 500, 750, 1K, 1K5, 2K, 3K, 4K, 6K, 8K
    • Frequency accuracy: <1%
    • Distortion: <2%
    • Output level range (AC): -10dBHL to 100dBHL (max)
    • Output level accuracy: Within 3dB
    • Output level step size: 5dB
    • Test modes: Automatic and Manual
    • Internal memory: 12 complete tests
    • Designed Printer: High speed portable thermal printer
  • Physical Data
    • Graphic display: 2 lines of 24 characters (backlit)
    • Power (Mains): 100-240V ac 50/60 Hz
    • Dimensions:
      • Length:10.5”
      • Width: 7”
      • Height: 2.75”
    • Weight: 1.6 lbs
  • Standards
    • Safety: EN60601-1
    • EMC: EN60601-1-2
    • Audiometric:
      • IEC 60645-1
      • ANSI S3.6
    • CE Mark: Complies to EU Medical Device Directive

Warranty Information

  • 3-Year Warranty
