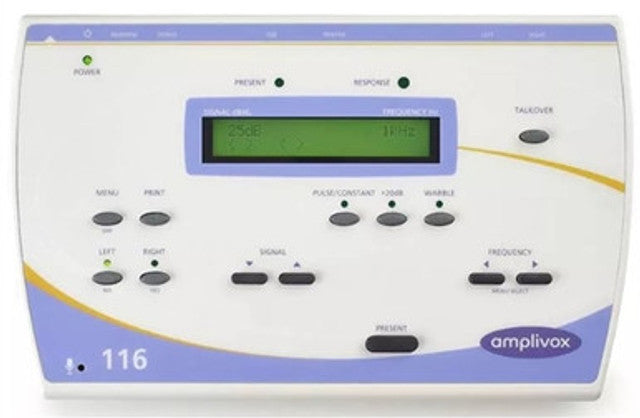

Amplivox 116 Portable Manual Screening Audiometer

The Amplivox 116 is a portable, manual screening audiometer designed for fast and efficient screening. It is used by primary care professionals around the world.

Features and Benefits

• Frequency range: 125 - 8000Hz
• Attenuation range: -10 - 100dBHL
• Tone selection: pure, pulsed, warble, continuous
• Portable and lightweight design
• Integrated talk forward function
• Threshold retention function (during test)
• Optional battery power option available
• Optional audiocups headset available
• Results can also be printed using the optional Sanibel Infra-Red printer & cable
• Available software's to download for free; also included on a USB Stick
  • AmpliSuite 1.2
    • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
    • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
    • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
    • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
  • ampliSuite NOAH
    • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
    • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
  • ampliSuite PRO
    • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.

Materials Included

• 116 Audiometer
• (1) Audiometric headset
• (1) Patient Response Switch
• (50) Audiogram Cards
• (1) Carrying Case
• (1) Power Adapter
• (4) C-Cell Batteries (For Optional Battery Power)
• (1) USB Stick with AmpliSuite 1.2, AmpliSuite NOAH & AmpliSuite PRO Software & User Manual
• (1) Noah audiometry module
• (1) Audocups headset (Optional)

Technical Specifications

• Output/Input Data
  • Outputs: Left AC, Right AC
  • Frequency Range (Hz): 125, 250, 500, 750, 1K, 1K5, 2K, 3K, 4K, 6K, 8K
  • Frequency Accuracy: <1%
  • Distortion: <2%
  • Output level range (AC): -10dBHL to 100dBHL (max)
  • Output level accuracy: Within 3dB
  • Output level step size: 5dB
  • Tone Present: Single, pulsed, warble or continuous
• Physical Data
  • Graphic Display: 2 lines of 24 characters (backlit)
  • Power (battery): 4 x ‘C’ cell batteries
  • Power (mains): 100-240V ac 50-60 Hz
  • Dimensions:
    • Length: 9"
    • Width: 7"
    • Height: 2.5"
  • Weight: 1.6 lbs
• Standards
  • Safety: EN60601-1
  • EMC: EN60601-1-2
  • Audiometric:
    • IEC 60645-1
  • CE Mark: Complies to EU Medical Device Directive

Warranty Information

• 3-Year Warranty
