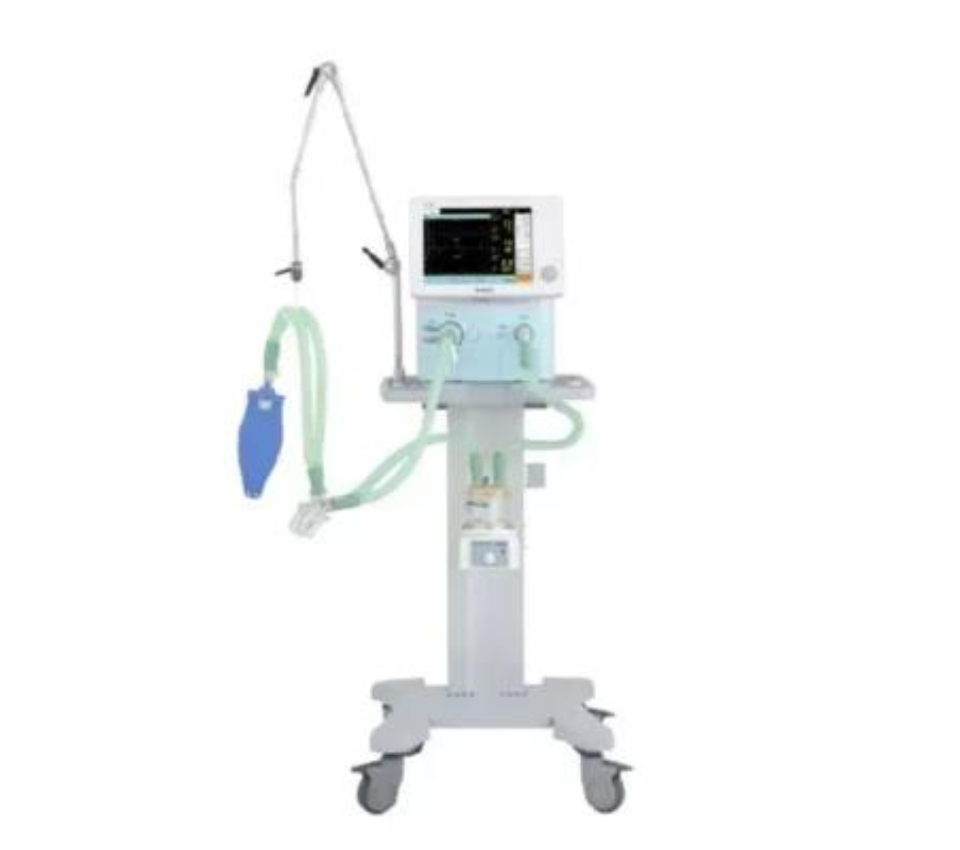

Ventilation Modes
VCV(A/C) PCV(A/C) PRVC SIMV(VCV)+PSV
SIMV(PCV)+PSV SIMV(PRVC)+PSV SPONT/CPAP+PSV
BIVENT+PSV NIV/CPAP NIV-T NIV-S/T
Parameters
• Tidal Volume: 20~2000 ml
• Respiration Rate: 1~80 bpm
• Tinsp: 0.2~9 s
• Tslope: 0~2 s
• Tpause: 0~4 s
• I:E Ratio: 1:10~4:1
• FiO2: 21%~100%
• Trigger Sensitivity: Pressure (-20~0 cmH2O, above PEEP)
Flow (0.5~20 LPM)
• PEEP: 0~35 cmH2O
• Psupport: 0~70 cmH2O
• Pinsp: 5~70 cmH2O
Special Procedures
Apnea Ventilation Smart Suction Manual Breath
Insp/ Exp Hold ETCO2 Measurement
Nebulization Waveform Freeze
Monitoring
• Pressure Value: Ppeak, Pplat, Pmean, Pmin, PEEP
• Volume / Flow Value: Vti, Vte, MV, MVspont
• Time Value: ftotal,fspont, I:E
• Real Time Curves: Pressure-Time, Flow-Time, Volume-Time waveforms
Pressure-Volume, Volume-Flow, Flow-Pressure loops
• Gas Monitoring: FiO2, ETCO2
• Calculated Values: Compliance(C)
Resistance(R)
MVleak
RSBI
WOB
PEEPi
Alarm
Paw high / low MVe high / low Circuit disconnnect
FiO2 high / low Inspiration / Expiratory tidal volume low
High Respiration Rate Apnea AC Failure Nebulizer On
Low Battery Air /O2 supply down High / Low PEEP
Leakage out of range Occlusion
Technical Data
• Screen: 12〞TFT color touch screen (detachable)
• Supply Gas: O2, 0.28~0.6 MPa
• Power Supply: AC100~240 V, 50 Hz/60 Hz
• Communication Interface: RS-232 Port, Nurse call Port, Ethernet Port
• Dimension (WxDxH): 322 mm x 375 mm x 366 mm (Main Unit)
547 mm x 675 mm x 950 mm (Cart)
• Weight: 12.5 kg (Main Unit)
- Ultra-quiet turbine technology
- Lifetime over 30,000 hours
- An optimal combination of Invasive and Non-invasive ventilation
- Advance ventilation modes including BIVENT and PRVC
- 12″ TFT detachable touch color screen, user-friendly layout
