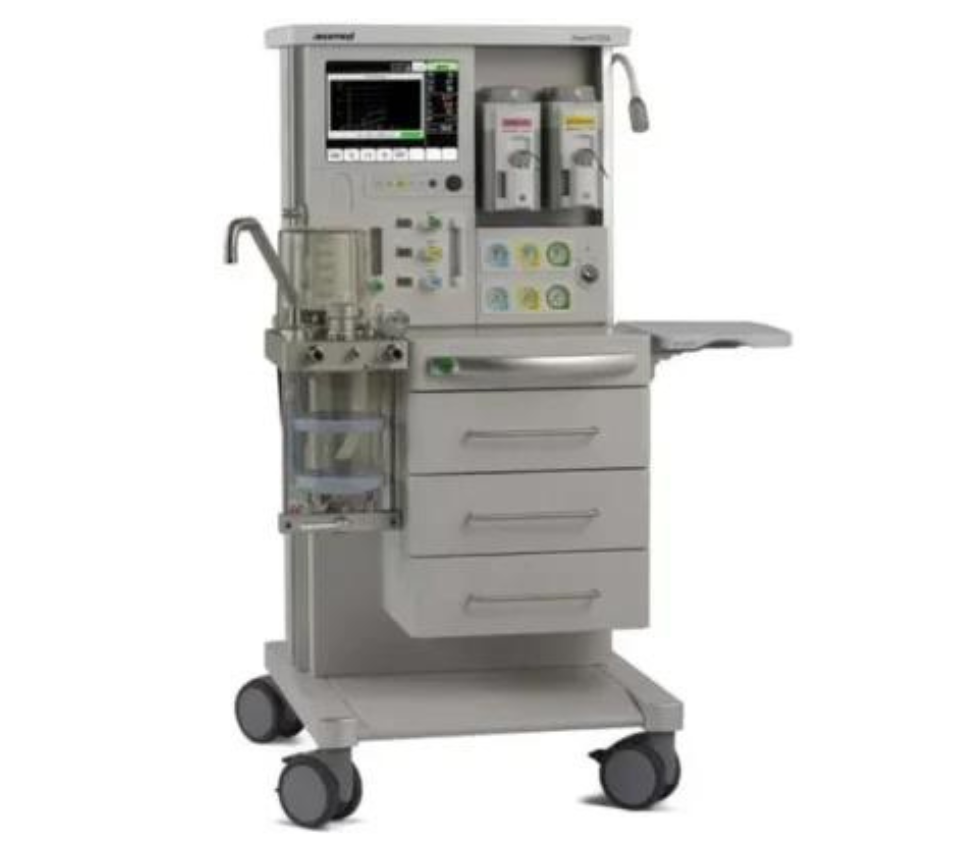

Anesthesia workstation.
Safe and efficient anesthesia support. Constantly innovating to meet the challenges of modern medicine. A variety of safe and practical designs ensure stable operation and easy maintenance.
Physical & Environment Specifications
·Dimensions(W×H×D): 704mm × 1403mm × 750mm
·Weight: 115kg (including trolley base and 2 vaporizers, without cylinder)
·
·Operation Humidity: ≤80% (noncondensing)
·Storage Temperature: -20~+55°C
·Storage Humidity: ≤93%(noncondensing)
Operation Temperature: +10~+40°C
Pneumatic Specifications
·
·Flowmeters: O Range: 0-1L/min; 1-10L/min
N2O Range: 0-1L/min; 1-10L/min
Air Range: 0-1L/min; 1-12L/min
Auxiliary O2 Range: 0 -15 L/min
·Gas System: Flowmeter backlight
Low O2 signal
N2O-cut-off system
O2 flush: 25-75L/min
Gas Supply : Air,O2,N2O; 280kPa - 600kPa
2
Technical Specifications
Information contained in this leaflet is correct at the date to publication. The policy of Beijing Aeonmed Co., Ltd. is one of the continued improvement to its products .
Because of this policy Beijing Aeonmed Co., Ltd. reserves the right to make any change, which may affect the information in this leaflet without giving prior notices.
Electrical Specifications
·
·Battery: 24V 5Ah, minimum 120 min
Mains: 100-240V AC, 50-60Hz
Breathing System Specifications
·
·Carbon Dioxide Absorbent Canister: 2 Loose fill(3L) or 2 prepacks
·APL Range: Spontaneous breathing (SP) -70 cmH2O
·Material: Autoclavable (except flow sensors, O2 fell cell and mechanical pressure meter)
Operational Modes: Closed, Semi-closed, Semi-open
Ventilator Specifications
·
·Patient Types:
·Ventilation Modes: IPPV, PCV, SIMV, PS, and Manual
·Setting Modes: Touch key & navigator wheel knob
·Tidal Volume: 20-1500ml
·Ventilation Frequency: 4-100bpm
·I:E Ratio: 4:1-1:8
·Pressure (inspired) Range:5-70cmH2O
·Pressure (support) Range: 3- 50cmH2O
·Ppeep: off,3-30 cmH2O
·Tslope: 0-2s
·Inspiratory Plateau: off, 5%-60%Ti,
·Trigger Sensitivity: 1-15L/min
·Peak Gas Flow: 75 L/min
·Compensation: Compliance compensation, fresh gas compensation
Driven Modes: Pneumatically driven and electronically control
Adult, Pediatric
Ventilator Monitoring
·
·Pressure: Paw, Peak, Pplat, Pmean, PEEP
·Volumes: MV, Vt
·Gas: O2 Concentration, CO2 Concentration, Anaesthesia Agent Concentration
·Graph Display: P-T, F-T&P-V,F-V loops(can be saved), Wave of CO2
Display: 10.4” TFT color screen
Alarm
·
·Volumes: MV high/low limit,
·Gas: FiO2 high/low limit
·Power failure
·Apnea Alarm: 60 seconds
·Alarm Silence:110 seconds
Pressure: Paw high/low limit
Vaporizer
·
·Agent: Halothane, Enflurane, Isoflurane , Sevoflurane.
·Installation Mode: Selectatec with interlock
·Filling Type: Pour Fill, Key Fill, Quik-Fil
- 10.4″ TFT color display
- Co2, anesthetic gas and other gas analysis
- Vaporizer accurately and quickly controls the concentration of inhaled drugs
