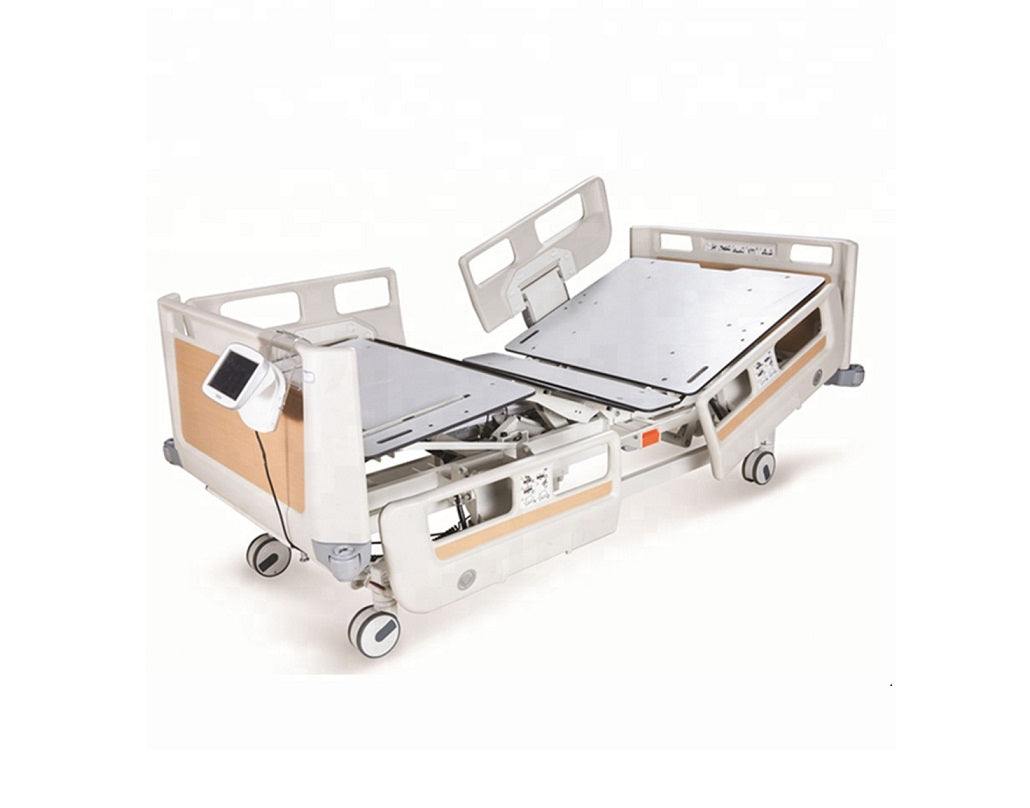

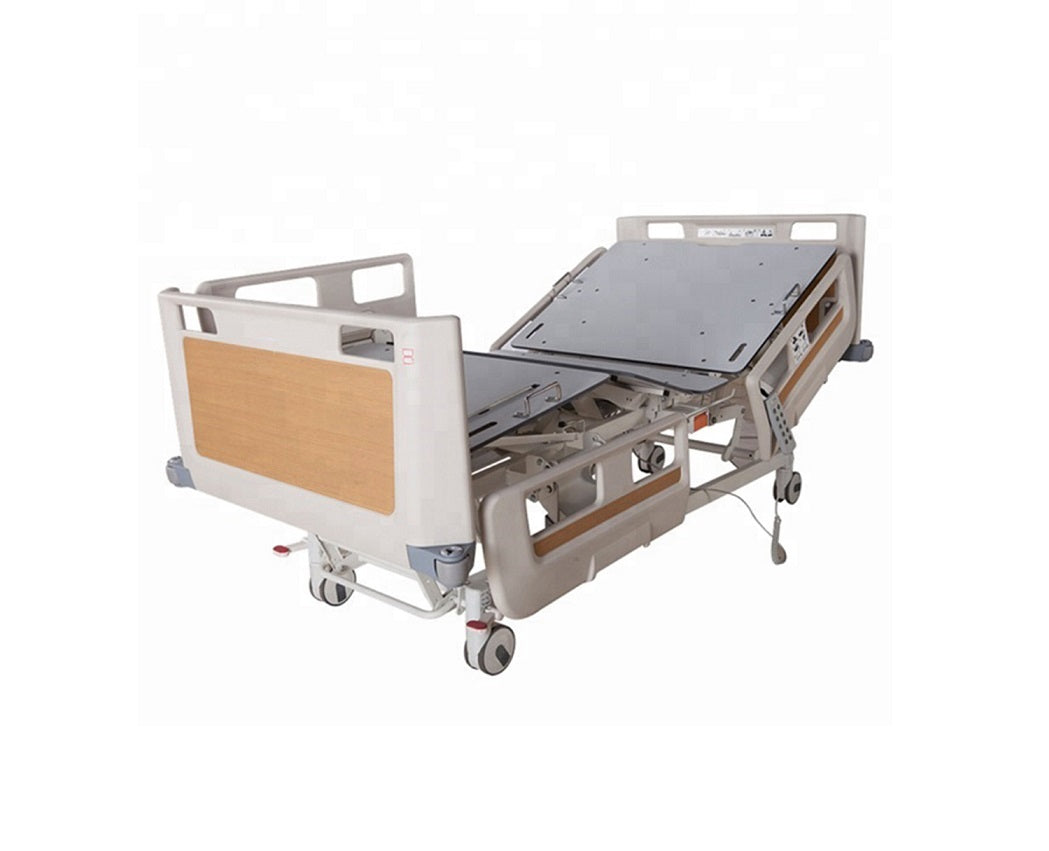

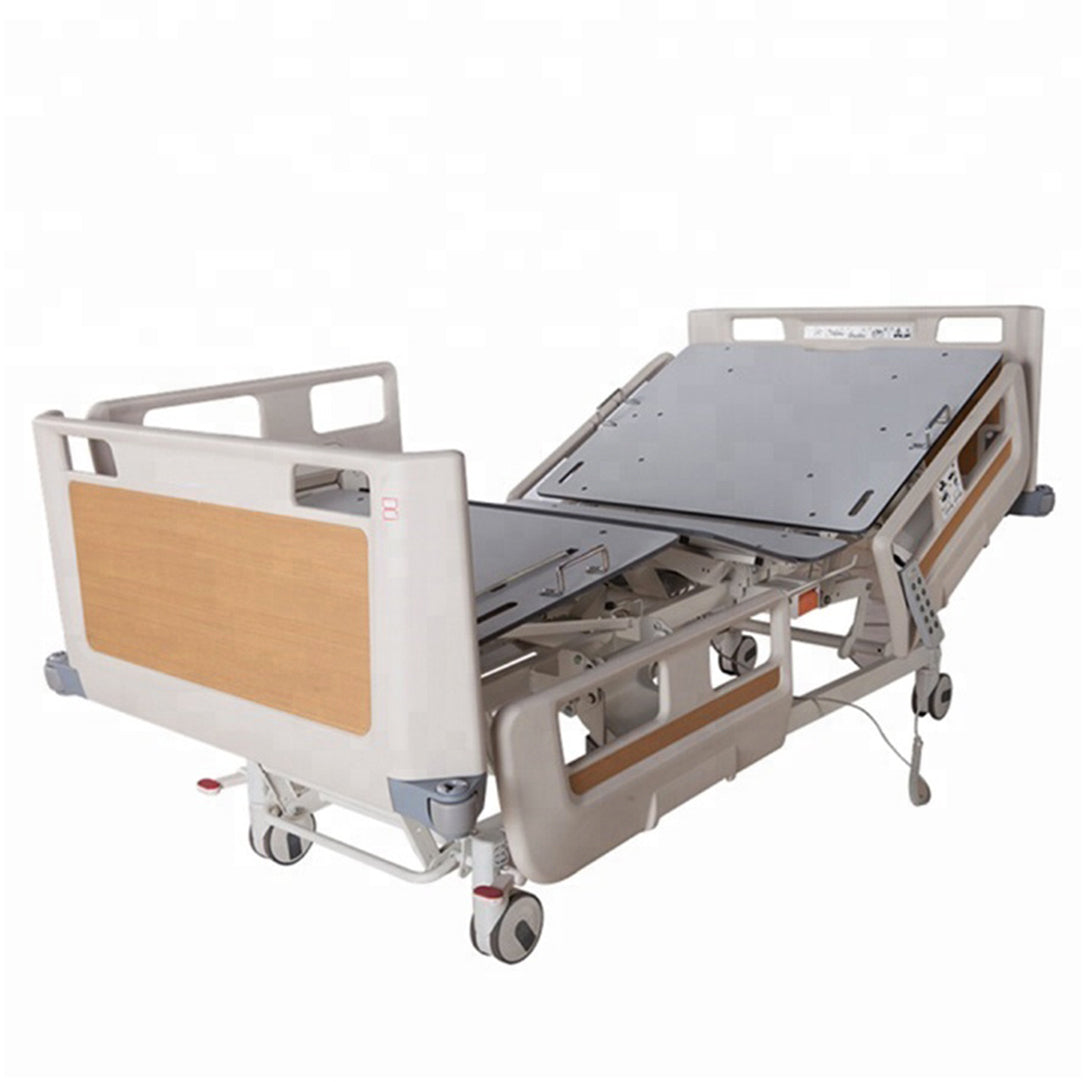

| Product:4 functions electric medical hospital bed with X-ray cassette |
Parameters |
| Item No. |
ICUB-M3 |
| Size |
Bed Panel |
Length |
1950mm |
| Width |
910mm |
| Size: |
Total Length |
2170mm (could be extented to 2350mm) |
| Total Width |
1080mm |
| Height (From Floor) |
500-850mm |
| Back Plate Adjusting |
0-75° |
| Knee Section Adjusting |
0-45° |
| Bed panel extension |
Manual/180mm |
| Safety load capacity |
240KGS |
| Function &configuration |
Movement |
Back plate up and down |
| Knee section up and down |
| Back and knee section move together |
| overall lifting |
| Trendelunburg & reverse trendelunburg position |
| Manual CPR |
| Mattress Anti-Slipper |
At sides and end of bedA |
| Drainage Hook |
At sides of bed (4 in total) |
| IV Pole Hole |
F:2, H:2 |
| Castors |
Germany TENTE castors,
dia125mm,central control castor
|
| Main Material |
Frame |
Cold rolled steel (painted with antibacterial powder) |
| Bed head and end board,guardrail |
ABS |
| Others |
IV Pole |
Optional |
| Mattress |
Optional |
| Dining Table |
Optional |
| Oxygen Bottle Support |
Optional |
* Angle dispaly on 4 pcs of guardrails
* All movements are controlled by LCE panel at bed end
* IV pole hole support at each corner, which also protect bed from collision
* Luxury central control castors, with locking device for licking, free moving and orientation function
* With CPR function, bed come back to level position for patient rescue
* Bed length could be extended, just need to pull out bed end board.
* Bed panel is made of HPL board, allow X-ray irradiation, cassette at back plate.
* 2 step adjustment at shank section, make shank at ease.
* ABS Bed head and end board, can be removed while shipping to save space and cost. Color can be changed as
customer requires.
* Load capacity no less than 300kg
Whole bed can weigh, with error controlled in 1-3%.
* Bed weighing system can continuously detect subtle changes in patient weight.
* Back plate adjusting 65° ±5°
* Leg plate adjusting 45° ±5°
* Head and foot tilt 13° ±3°
* Lifting 500-860mm
* Back plate and knee section can lift at same time with one button
* 4 pieces of European style guardrails, can be hidden below bed panel good price
